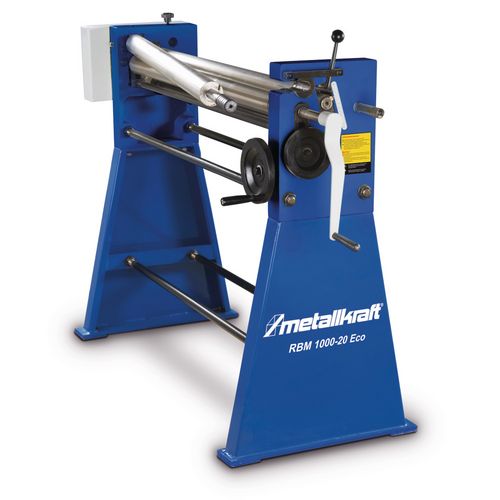

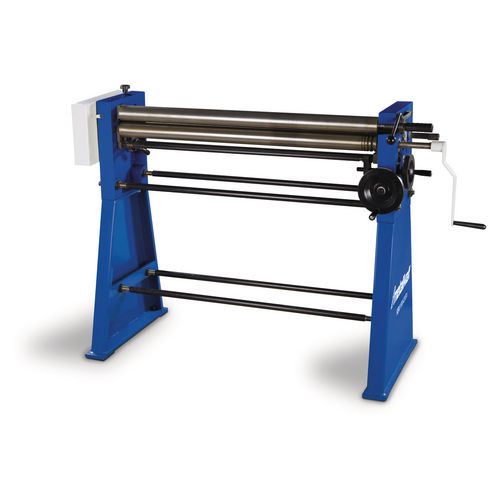

Manual plate rolling machine

RBM 1000-20 Eco

Asymmetrical with three rollers

1.399,00 EUR excl. Tax / pc(s).
1.664,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3781301

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • heavy and stable cast iron construction
    • asymmetric 3-roller system for easy pre-bending
    • swing-out top roller
    • Roller drive via hand crank
    • suitable for bending wires with the diameters 3, 5 and 8 mm
    • quick clamping of the sheet metal by means of a lever



    • Note: Please specify when ordering material to be processed!



    Bending performance
    Max. pre-bending performance in steel 400 N/mm²2.0 mm
    Min. bending diameter100 mm
    Dimensions and weights
    Max. working width1000 mm
    Top roller diameter60 mm
    Length approx.1542 mm
    Width/depth approx.550 mm
    Height approx.1040 mm
    Weight approx.200 kg
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
