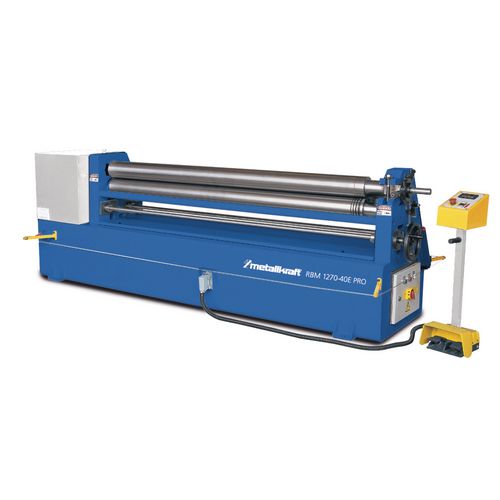

Motorized plate rolling machine
RBM 1270-40E Pro
In heavy design for sheet thicknesses up to 4 mm
10.889,00
EUR excl. Tax / pc(s).
12.957,91
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3813301
Are you interested in this product?
Put a request
Find Trader
Productdetails
- heavy steel welded construction
- Upper and pinch roller driven
- swing-out top roller
- Manual delivery of the clamping and side rollers
- Roller drive via powerful electric motor and gearbox
- Wire grooves on the pinch roller
- Safety device Emergency line

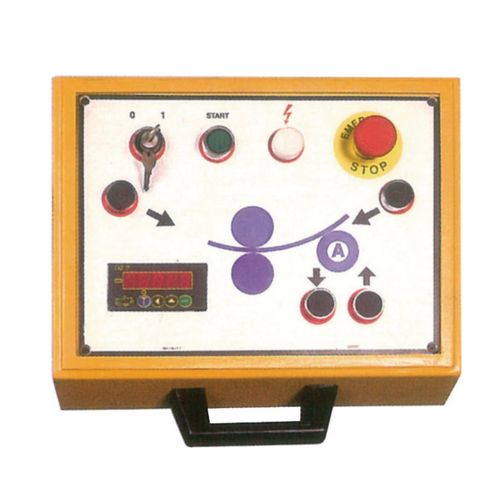

- with mobile control panel and foot pedal
Room amenities:
- Swivel top roller
- Control panel with digital display and manual operation (option)
- RBM 2050-30 E PRO with optional side roller motorized delivery and side view digital display
- Note: machine can not be retrofitted with accessories, only when ordering new machine
- Note: Please specify when ordering material to be processed!
- Note: Other models on request
| Bending performance | |
|---|---|
| Max. bending performance in steel 400 N/mm²² | 4.0 mm |
| Max. taper bending performance in steel 400 N/mm² | 2.0 mm |
| Max. bending performance in stainless steel | 3.0 mm |
| Max. taper bending performance in stainless steel | 1.5 mm |
| Max. bending performance aluminium | 4.8 mm |
| Max. taper bending performance in aluminium | 2.4 mm |
| Min. bending diameter | 180 mm |
| Roller speed | 3 m/min |
| Dimensions and weights | |
|---|---|
| Max. working width | 1270 mm |
| Top roller diameter | 120 mm |
| Length approx. | 2470 mm |
| Width/depth approx. | 750 mm |
| Height approx. | 1000 mm |
| Weight approx. | 1115 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 2,2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
