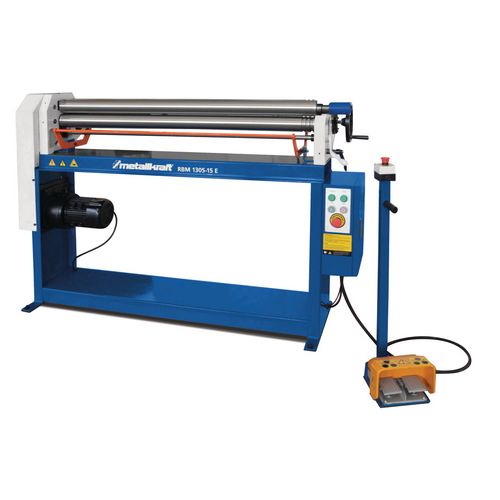

    Motorized plate rolling machine

    RBM 1305-15 E

    Asymmetrical with three rollers

    2.799,00 EUR excl. Tax / pc(s).
    3.330,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.299,00 EUR excl. Tax / pc(s).
    2.735,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3781305

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For producing all round shaped parts such as pipes, cylinders, etc.
    • Roller drive via hand crank or motorized on E models
    • Heavy and stable cast iron construction
    • Asymmetric 3-roll system for easy pre-bending
    • The upper roller is adjustable, thus easy removal of the finished workpiece

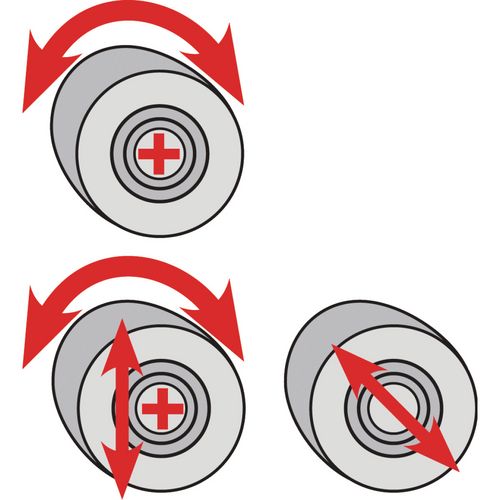

    • Swiveling top roller
    • Easily adjustable upper and lower roller
    • Possibility of conical bending
    • With safety devices
    • Standard wire insert groove on bottom and back roller
    • The foot control leaves both hands free for the material supply



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Bending performance
    Max. bending performance in steel 400 N/mm²²1.5 mm
    Max. taper bending performance in steel 400 N/mm²0.8 mm
    Max. bending performance in stainless steel1.1 mm
    Max. taper bending performance in stainless steel0.6 mm
    Max. bending performance aluminium1.8 mm
    Max. taper bending performance in aluminium0.9 mm
    Min. bending diameter110 mm
    Roller speed4 m/min
    Dimensions and weights
    Max. working width1270 mm
    Top roller diameter75 mm
    Length approx.1650 mm
    Width/depth approx.1020 mm
    Height approx.1110 mm
    Weight approx.318 kg
    Drive
    Protection class drive motorIP 44
    Electrical connections
    Total current draw2.5 A
    Electrical Data
    Drive motor output0,75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Powered top and bottom rollers
    • Wire insert groove on lower and rear roller
