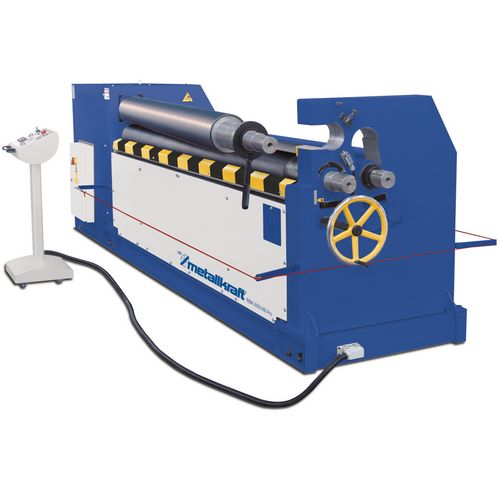

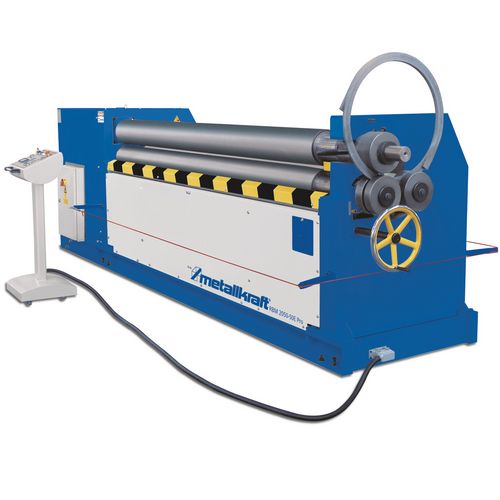

    Motorized plate rolling machine

    RBM 2050-50E Pro

    In heavy design with motorized delivery for plate thicknesses up to 6 mm

    26.550,00 EUR excl. Tax / pc(s).
    31.594,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3813315

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy steel welded construction
    • Upper and pinch roller driven
    • Motorized delivery of the side roller
    • Swing-out top roller
    • Roller drive via powerful electric motor and gearbox
    • Safety device Emergency line
    • Mobile control panel

    Room amenities:

    • Swiveling top roller

    Note:

    • Please specify when ordering material to be processed!
    • Other models on request



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Bending performance
    Max. pre-bending performance in steel 400 N/mm²4.0 mm
    Max. bending performance in steel 400 N/mm²²5.0 mm
    Max. taper bending performance in steel 400 N/mm²2.5 mm
    Max. bending performance in stainless steel3.7 mm
    Max. taper bending performance in stainless steel1.8 mm
    Max. bending performance aluminium6 mm
    Max. taper bending performance in aluminium3 mm
    Min. bending diameter225 mm
    Roller speed3.4 m/min
    Dimensions and weights
    Max. working width2050 mm
    Top roller diameter150 mm
    Length approx.3750 mm
    Width/depth approx.680 mm
    Height approx.1040 mm
    Weight approx.1885 kg
    Electrical Data
    Drive motor output3,0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    VPE1
    Unit: pc(s).
    Packaging unit: 1
