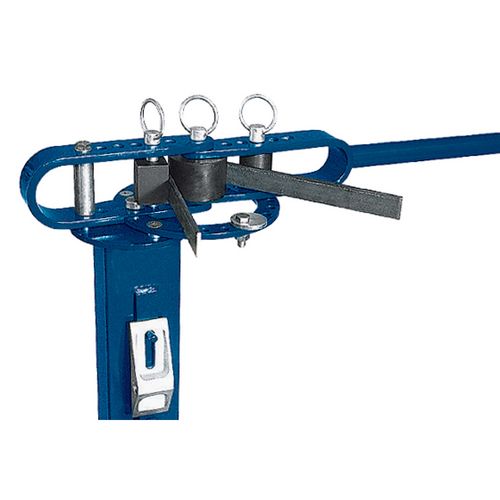

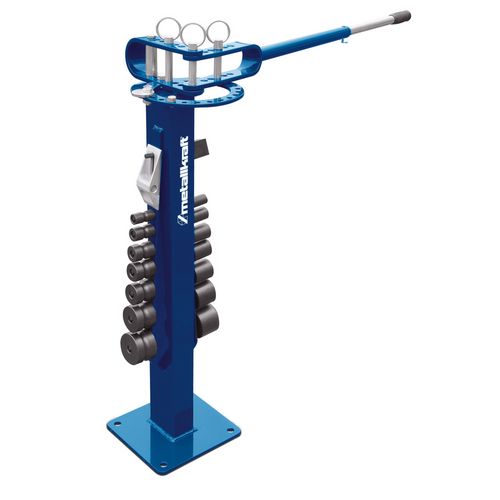

    Universal bending machine

    UB 10

    For angular, round and spiral bending of flat and square material

    499,00 EUR excl. Tax / pc(s).
    593,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    469,00 EUR excl. Tax / pc(s).
    558,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3776010

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Cold bending up to an angle of 180 °
    • Adjustable bending angle stop for high repeat accuracy
    • with the option UB 11 also for bending spirals
    • with screw-on base for the workshop
    • easy to transport, ideal for workshop, on assembly and in service trolley
    • Removable bending unit, with optional clamping plate can also be used on a vice
    • Quality Made in Europe



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Pipe diameter imperialG 3/4 "
    VPE1
    Bending performance
    Flat steel10 x 50 mm
    Flat steel bending radius 3 mm6 x 50 mm
    Solid material round steel/aluminium/copper16 mm
    Solid material round stainless steel14 mm
    Solid material square steel/aluminium/copper16 x 16 mm
    Solid material square stainless steel14 x 14 mm
    Dimensions and weights
    Weight approx.32 kg
    Unit: pc(s).
    Packaging unit: 1



    2 pieces of bending rolls each:

    • for bending radius 24 mm
    • for bending radius 30 mm
    • for bending radius 37 mm
    • for bending radius 43 mm
    • for bending radius 49 mm
    • for bending radius 62 mm
    • for bending radius 75 mm
