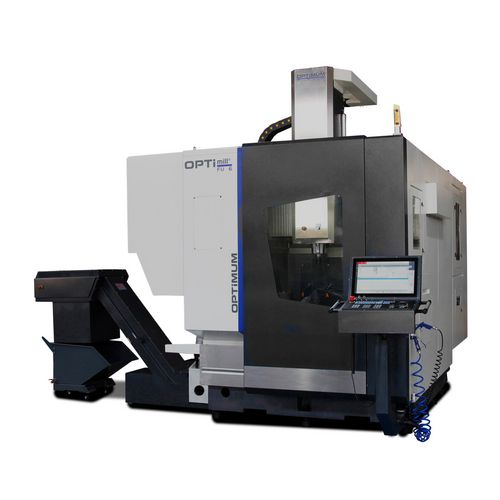

    CNC milling machine

    OPTImill FU 6

    5-axis simultaneous machining center for maximum productivity

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3521360

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • State-of-the-art SINUMERIK ONE CNC control from Siemens with a wide range of functions that significantly increase both productivity and flexibility (detailed information in the OPTIMUM CNC main catalog)
    • Heavy-duty design
    • High productivity
    • Telescopic guideway cover
    • Precision-ground, preloaded high-performance ball screws for high rapid traverse speeds
    • Spindle mounted in P5 precision bearings and permanently lubricated
    • High-torque servo drives in all five axes
    • Precision linear guide
    • Heidenhain glass scales for higher accuracy
    • High rapid traverse speed of up to 24 m/min. in X, Y and Z axes
    • A/C axis with torque motor for maximum speed and lifetime accuracy
    • The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
    • Tool changer double-arm gripper with 60 tool positions included as standard
    • Coolant system with 480 liter coolant tank with chip flushing system and cleaning gun
    • Automatic central lubrication
    • RJ45 plug connection, USB and 230 V power connection
    • Additional USB interface on the control panel
    • Water circuit cooling unit for the main spindle and main spindle motor as well as for the A and C axes
    • Chip conveyor in belt design ensures efficient chip removal
    • Chip trolley
    • Collision Avoidance - software for collision avoidance
    • Internal tool cooling 70 bar with internal tank (an extraction system is recommended)
    • Heat exchanger
    • EMC (electromagnetic compatibility)
    • Two-year Siemens repair service contract included. Extension of the Siemens additional package repair service contract (RSV) possible



    • State-of-the-art SINUMERIK ONE CNC control system from Siemens
    • Heavy-duty design
    • High productivity
    • Precision-ground, preloaded high-performance ball screws for high rapid traverse speeds
    • Precision linear guide
    • Heidenhain glass scales for higher accuracy
    • Tool changer double-arm gripper with 60 tool positions included as standard
    • Water circuit cooling unit for the main spindle and main spindle motor as well as for the A and C axes
    • Chip conveyor in belt design ensures efficient chip removal
    • Collision Avoidance - software for collision avoidance
    • Internal tool cooling 70 bar with internal tank (an extraction system is recommended)



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Control
    TypeSinumerik ONE
    Cooling lubricant system
    Tank capacity external CTS unit165 l
    Dimensions and weights
    Length approx.2880 mm
    Width/depth approx.4290 mm
    Height approx.3480 mm
    Weight approx.14500 kg
    Electrical connections
    Total rated value70 kVA
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Fast motion speed
    X axis24000 mm/min
    Y axis24000 mm/min
    Z axis24000 mm/min
    Feed force
    Feed force X-axis10 kN
    Feed force Y-axis10 kN
    Feed force Z-axis13.5 kN
    Feed motor torque
    X axis continuous operation S122 Nm
    Y axis continuous operation S122 Nm
    Z axis continuous operation S127 Nm
    Milling table horizontal
    Table length600 m
    Table width500 mm
    T-groove size14 mm
    Max. load bearing capacity400 kg
    Pneumatic connection
    Operating pressure6 bar
    Precision
    Repetition accuracy± 0.004 mm
    Positioning accuracy± 0.008 mm
    Product information EU 2023/2854
    Type of the generated dataUsage data
    Format of the generated dataCommon, machine-readable formats such as JSON
    Amount of dataUp to 5 MB
    Continuous data generation in real timeYes
    Data storage location On the device
    Data accessVia physical interfaces
    Further informationIn the operating instructions or at info@stuermer-maschinen.de
    Pump
    Pump motor chip flushing0.85 kW
    Pump motor chip flushing conveying rate150 l/min
    Pump motor front/left chip flushing1.08 kW
    Pump motor front/left chip flushing delivery rate150 l/min
    Pump motor cleaning gun0.53 kW
    Pump motor cleaning gun delivery rate58 l/min
    Rotary axis
    Swivel axis± 120 °
    Rotation axis360 °
    Max. speed A axis100 min¯¹
    Max. speed C axis120 min¯¹
    Tilting and rotating table
    Hydr. clamping torque swivel axis C (50bar hydraulic pressure)850 Nm
    Hydr. clamping torque swivel axis A (50bar hydraulic pressure)850 Nm
    Travel
    X axis automatic800 mm
    Y axis automatic740 mm
    Z axis automatic600 mm
    Turret
    DesignDouble arm gripper
    Number of tool slots60
    Max. tool diameter adjacent slots free90 mm
    Max. tool diameter78 mm
    Max. tool length300 mm
    Max. tool weight8 kg
    Tool change time chip to chip (C to C)3 s
    Vertical spindle
    Spindle chuckHSK 63
    Speed15000 min¯¹
    Drive motor output continuous operation S125 kW
    Drive motor output S6-30 % operation40 kW
    Torque drive motor continuous operation S1105 Nm
    Torque drive motor S6-30 % operation261 Nm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
