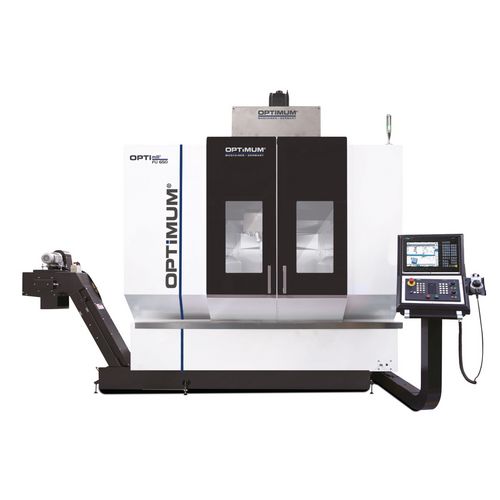

    Productimage for OPTImill FU 650
    Brandimage to Product OPTImill FU 650

    CNC milling machine

    OPTImill FU 650

    5-axis simultaneous machining center for maximum productivity

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3522200

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • State-of-the-art SINUMERIK ONE CNC control from Siemens with a wide range of functions that significantly increase both productivity and flexibility (detailed information in the OPTIMUM CNC main catalog)
    • Heavy-duty design
    • High productivity
    • Telescopic guideway cover
    • Precision-ground, preloaded high-performance ball screws for high rapid traverse speeds
    • Spindle mounted in P5 precision bearings and permanently lubricated
    • High-torque servo drives in all five axes
    • Precision linear guide
    • Heidenhain glass scales for higher accuracy
    • High rapid traverse speed of up to 36 m/min
    • C-axis with torque motor for maximum speed and lifetime accuracy
    • A-axis with worm gear for high torque during tilting operations
    • Z-axis feed motor reinforced
    • The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
    • Tool changer double-arm gripper with 32 tool positions included as standard
    • Coolant system with 380 liter coolant tank with chip flushing system and cleaning gun
    • Automatic central lubrication
    • RJ45 plug connection, USB and 230 V power connection
    • Additional USB interface on the control panel
    • Water circuit cooling unit for the main spindle and main spindle motor
    • Chip conveyor in belt design ensures efficient chip removal
    • Chip trolley
    • Collision avoidance software for collision avoidance
    • Internal spindle cooling 40 bar with internal tank (an extraction unit is required)
    • Air conditioning
    • TSC Thermal spindle compensation
    • DCM Dynamic collision monitoring
    • EMC (electromagnetic compatibility)
    • Two-year SIEMENS repair service contract included. Extension of the SIEMENS additional package repair service contract (RSV) possible



    Dimensions and weights
    Length approx.4040 mm
    Width/depth approx.4840 mm
    Height approx.3600 mm
    Weight approx.13000 kg
    Electrical connections
    Total rated value50 kVA
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Fast motion speed
    X axis48000 mm/min
    Y axis48000 mm/min
    Z axis40000 mm/min
    Pneumatic connection
    Operating pressure6 bar
    Precision
    Repetition accuracy± 0,003 mm
    Positioning accuracy± 0,004 mm
    Product information EU 2023/2854
    Type of the generated dataUsage data
    Format of the generated dataCommon, machine-readable formats such as JSON
    Amount of dataUp to 5 MB
    Continuous data generation in real timeYes
    Data storage location On the device
    Data accessVia physical interfaces
    Further informationIn the operating instructions or at info@stuermer-maschinen.de
    Rotary axis
    Swivel axis± 120 °
    Rotation axis360 °
    Max. speed A axis40 min¯¹
    Max. speed C axis80 min¯¹
    Turret
    DesignDouble arm gripper
    Number of tool slots40
    Max. tool diameter adjacent slots free120 mm
    Max. tool diameter80 mm
    Max. tool length300 mm
    Max. tool weight8 kg
    Vertical spindle
    Spindle chuckHSK 63 DIN 69893
    Speed range10 18000 min¯¹
    Drive motor output continuous operation S115 kW
    Drive motor output S6-30 % operation18 kW
    Torque drive motor continuous operation S170 Nm
    Torque drive motor S6-30 % operation84 Nm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
