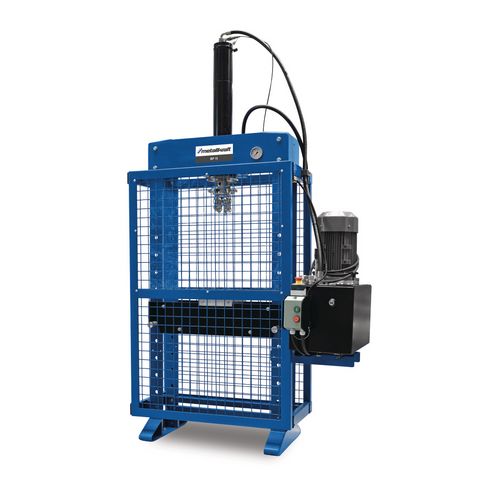

    Productimage for RP 15
    Brandimage to Product RP 15

    Hydraulic broaching press

    RP 15

    developed for precision machining tasks

    7.690,00 EUR excl. Tax / pc(s).
    9.151,10 EUR incl. 19% Tax / pc(s).
    Promotional price *
    7.299,00 EUR excl. Tax / pc(s).
    8.685,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2026 in Germany.

    Art.-No. 4032015

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Specially developed for linear broaching suitable for almost any metal alloy
    • Equipped with a fixed cylinder
    • Robust frame with hole pattern for height adjustment of the work table
    • Protective grids on the front and rear as well as a locking mechanism ensure safe operation
    • Joystick control of the piston
    • Speed regulator for fine adjustment of the cylinder speed
    • Working pressure can be read via pressure gauge



    • Specially developed for linear broaching suitable for almost any metal alloy
    • Equipped with a fixed cylinder
    • Joystick control of the piston
    • Speed regulator for fine adjustment of the cylinder speed



    Presskraft15 t
    Kolbenhub600 mm
    Vorlaufgeschwindigkeit0 – 30 mm/s
    Pressgeschwindigkeit0 – 30 mm/s
    Rücklaufgeschwindigkeit0 – 40 mm/s
    DruckregelungManuell mit einem Drehknopf
    VPE1
    Abmessungen und Gewichte
    Länge ohne Pumpe945 mm
    Lichte Höhe max.1012 mm
    Lichte Höhe min.112 mm
    Lichte Weite650 mm
    Kolbenadapter Durchmesser80 mm
    Kolben Durchmesser50 mm
    Zylinder Durchmesser90 mm
    Länge ca.1265 mm
    Breite/Tiefe ca.720 mm
    Höhe ca.2300 mm
    Gewicht ca.305 kg
    Elektrische Daten
    Abgabeleistung (Motorleistung)5,5 kW
    Anschlussspannung400 V
    Netzfrequenz50 Hz
    Elektrischer Anschluss
    SchutzartIP54
    Unit: pc(s).
    Packaging unit: 1



    Delivery with hydraulic oil
