| Dimensions and weights | |
|---|---|
| Column diameter | 115 mm |
| Length approx. | 860 mm |
| Width/depth approx. | 475 mm |
| Height approx. | 2175 mm |
| Weight approx. | 365 kg |

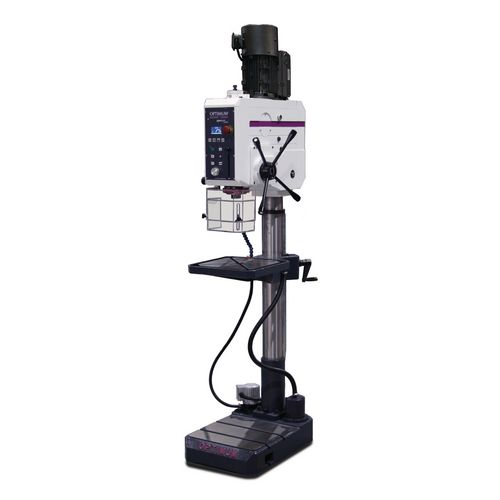

Getriebebohrmaschine
OPTIdrill DH 35V
7.009,00
EUR excl. Tax / pc(s).
8.340,71
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3034254
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Dirt- and water-resistant, easy-to-clean membrane keyboard
- 24V DC electronics
- Electric quill feed
- Drilling depth stop
- Low-maintenance gearbox running in a sealed oil bath
- Thread-cutting device
- Machine lamp integrated into the drill head
- Main switch
- Generously sized, height-adjustable safety screen with safety switch for maximum user protection
- Generously dimensioned, solid drilling table, precision-machined with 2 diagonal T-slots and a circumferential coolant channel, heavily ribbed on the underside
- Coolant system with coolant reservoir
- Chip filter cleans coarse particles from the coolant
- Sturdy, thick-walled cast iron column for high load-bearing capacity
- Solid base plate with parallel T-slots, precision-finished
- Connection option for the optional foot switch (item no. 3050032). The foot switch is used to reverse the direction of rotation for thread cutting and can also be used to deactivate the automatic quill feed.
OPTIdrill DH 35V
- Infinitely variable speed control
- Programmable feed stop

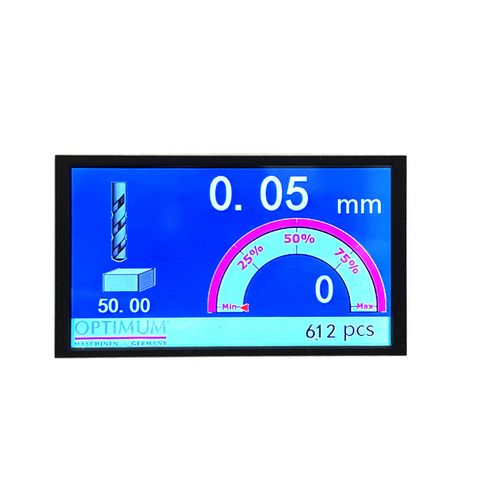

- Easy-to-read digital display
- Digitally adjustable drilling and tapping depth
- Digital zero point setting
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 35 mm |
| Continuous drilling performance steel (S235JR) | 26 mm |
| Thread tapping steel (S235JR) | M 24 |
| Drilling table | |
|---|---|
| Workspace length | 400 mm |
| Workspace width | 420 mm |
| T-groove type | diagonal |
| T-groove size | 14 mm |
| T-groove number | 2 |
| Load bearing capacity | 200 kg |
| Max. distance spindle - drilling table | 800 mm |
| Min. distance spindle - drilling table | 65 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 2,2 kW |
| Coolant pump output | 40 W |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1217 mm |
| Work area length | 420 mm |
| Work area width | 395 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 150 mm |
| Manufacturer infos | |
|---|---|
| Manufacturer | Optimum Maschinen Germany GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@optimum-maschinen.de | |
| Motor(s) | |
|---|---|
| Coolant pump drive motor output | 40 W |
| Speed range | |
|---|---|
| Speed range | 30 2950 min¯¹ |
| Number of gears | 4 Steps |
| Speed control | electronically adjustable |
| Spindle | |
|---|---|
| Quill stroke | 125 mm |
| Spindle chuck | MT 4 |
| Reach | 285 mm |
| Quill feed speed | 0.05 – 0.15 mm/rev |
| Quill feed gears | 3 Steps |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Quick-action drill chuck 1 - 16 mm
- Tapered arbor for drill chuck MK 4/B16
