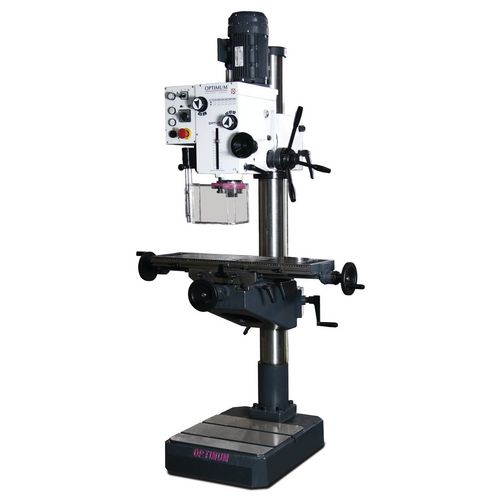

Pillar gear drill with cross table

OPTIdrill DH 40CT

The versatile machines for milling and drilling.

3.250,00 EUR excl. Tax / pc(s).
3.867,50 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3034349

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Heavy, solid cast version
    • Smooth running due to ground gearwheels running in an oil bath
    • Large speed range from 95 - 3.200 min-1
    • Dual-stage quality industrial electric motor

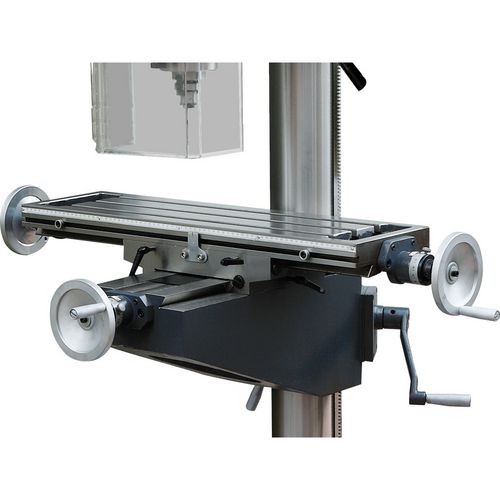

    • Large dimensioned, solid cross table, precisely surface machined, adjustable via 3 handwheels, with integrated longitudinal dimension scale
    • Adjustable end stops on cross table
    • The height of the gear head and table can be adjusted
    • Table guides can be precisely adjusted via adjustable wedge strips
    • Massive, precisely surface-treated base plate; can be used as work surface for particularly high workpieces by swivelling the cross table away
    • Right/left rotation
    • Drill depth stop
    • Thread cutting function



    Draw-in rodM 16
    VPE1
    Dimensions and weights
    Column diameter115 mm
    Length approx.1060 mm
    Width/depth approx.745 mm
    Height approx.2090 mm
    Weight approx.370 kg
    Drilling performance
    Drilling performance steel (S235JR)32 mm
    Continuous drilling performance steel (S235JR)25 mm
    Thread tapping steel (S235JR)M 16
    Max. shaft milling cutter size25 mm
    Max. sensor head size76 mm
    Drilling table
    Workspace length730 mm
    Workspace width210 mm
    T-groove size14 mm
    T-groove number3
    T-groove spacing63 mm
    Load bearing capacity50 kg
    Max. distance spindle - drilling table600 mm
    Electrical Data
    Drive motor output1,1 / 1,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base1180 mm
    Work area length495 mm
    Work area width 375 mm
    Machine base T-groove size14 mm
    Machine base T-groove number2
    Machine base T-groove spacing230 mm
    Length670 mm
    Width470 mm
    Speed range
    Speed range95 – 3200 min¯¹
    Number of gears2 x 6 Steps
    Spindle
    Quill stroke120 mm
    Quill diameter75 mm
    Spindle chuckMT 4
    Reach280 mm

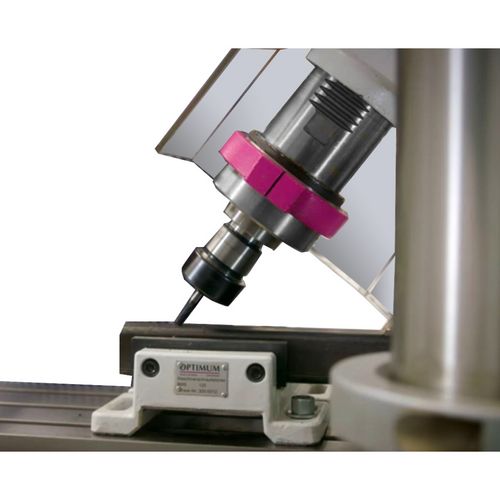

    Drilling head rotation360 °
    Drilling head angle45 °
    Quill feedManual
    Height adjustment260 mm
    Travel
    Drilling head travel (horizontal)480 mm
    Y axis manual180 mm
    Boom lift stroke (vertical)560 mm
    Unit: pc(s).
    Packaging unit: 1

    • Key drill chuck 1 - 13 mm / B 16
    • T-nuts
    • Adapter MK 4-MK 3
    • Arbor MK 4 / B16
    • Operating tool
