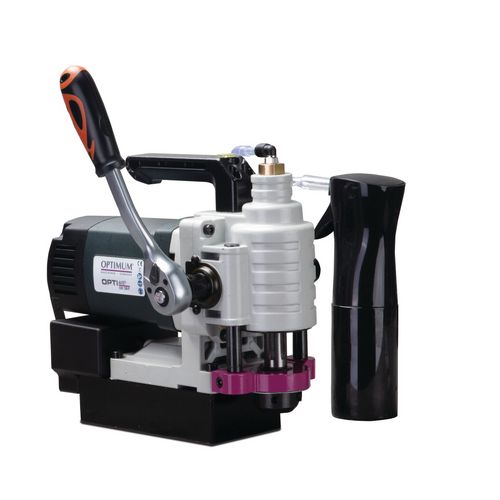

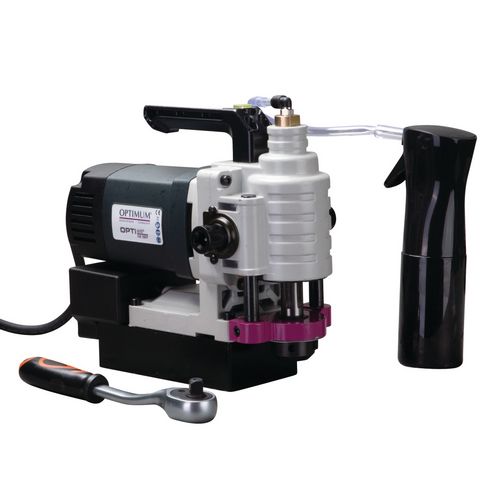

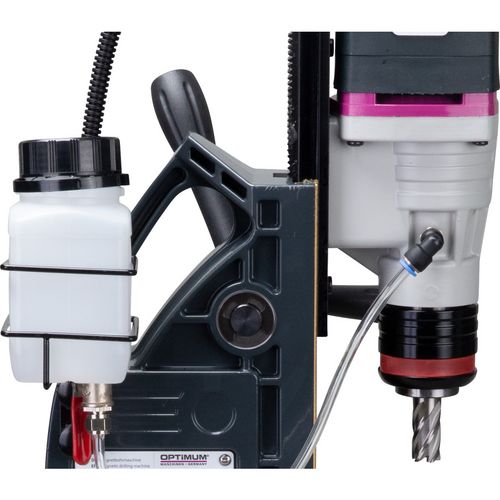

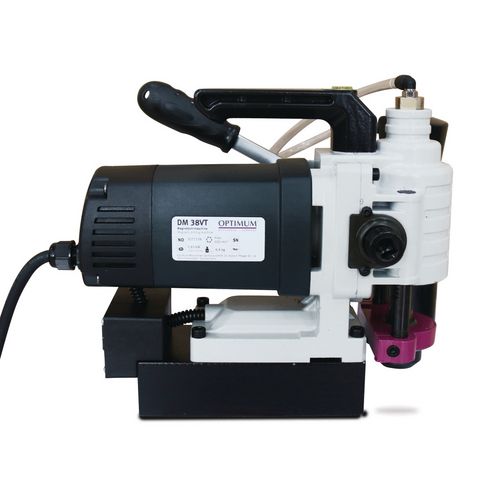

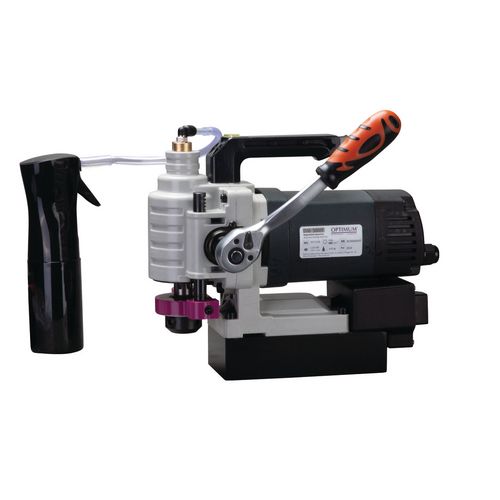

Magnetic core drill
OPTIdrill DM 38VF
The machine for working in cramped conditions. Impresses with compact and smart design. The spur gear is designed for continuous operations
649,00
EUR excl. Tax / pc(s).
772,31 EUR incl. 19% Tax / pc(s).
772,31 EUR incl. 19% Tax / pc(s).
Promotional price *
589,00 EUR excl. Tax / pc(s).700,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3071338
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Spur gear designed for continuous use
- Ideal for steel working, automotive and mechanical engineering, etc.
- Powerful magnetic holding force for safe work

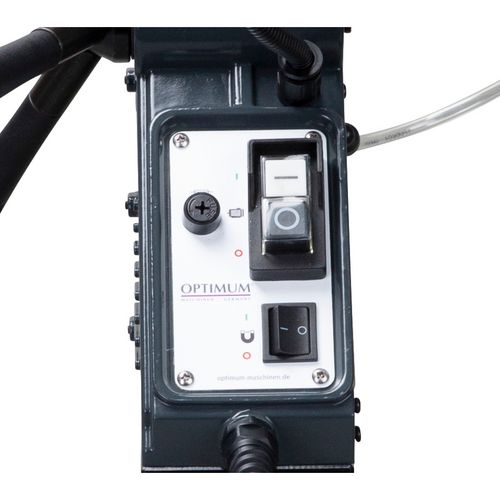

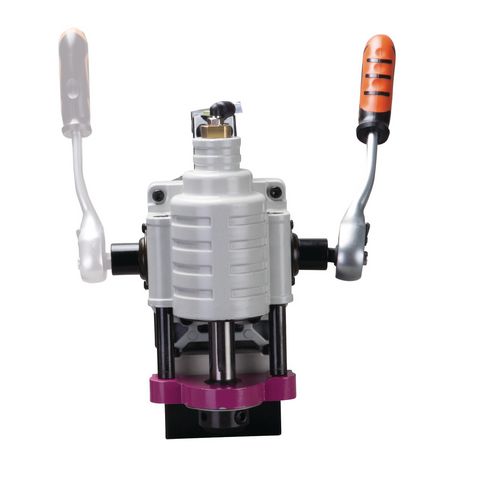

- Ergonomic single-handed operation due to intuitive arranged operating elements
- Includes safety straps as standard for upright and overhead work
Equipment details:
Magnetic holding force- Powerful magnet with 14.5 KN holding force
| Collet | |
|---|---|
| Spindle | fixed |

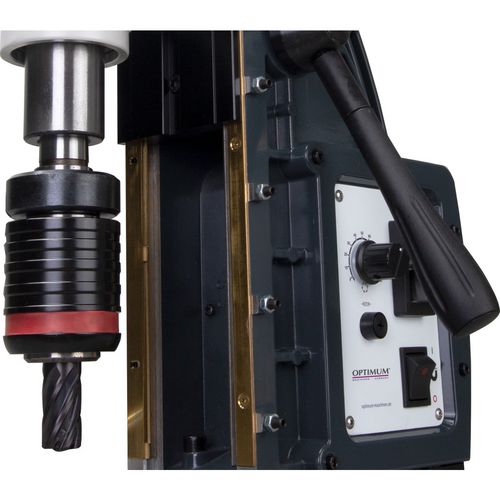

| Drill | Weldon 3/4" |
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 38 mm |
| Max. drilling depth core drilling with manual feed | 35 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 350 mm |
| Width/depth approx. | 150 mm |
| Height approx. | 240 mm |
| Weight approx. | 8.8 kg |
| Drive output | |
|---|---|

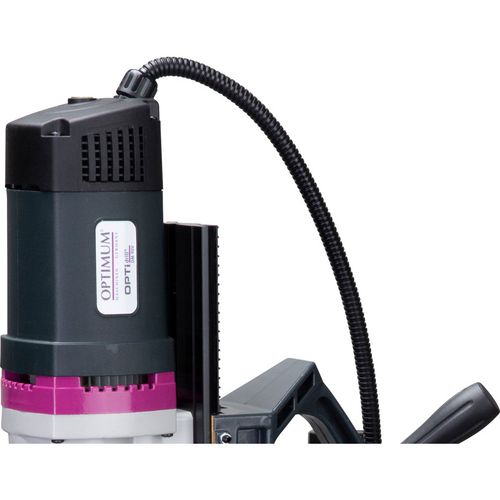

| Absorbed power drive motor | 1.65 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |

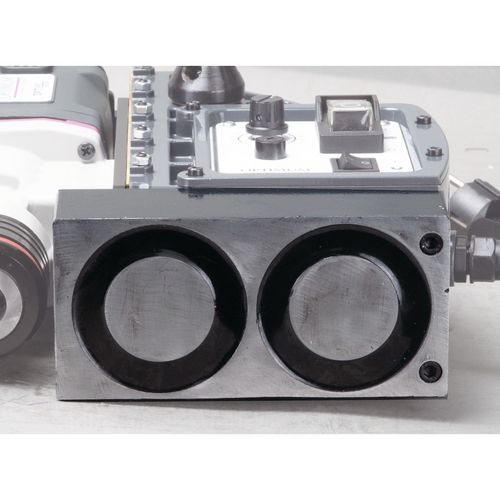

| Magnet | |
|---|---|
| Holding force | 14.5 kN |
| Magnet base length | 166 mm |
| Magnet base width | 80 mm |
| Speed range | |
|---|---|
| Idle (CW run) | 640 min¯¹ |
| Standards and certifications | |
|---|---|
| EMV-Class | C2 |
| Protection class | IP 42 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

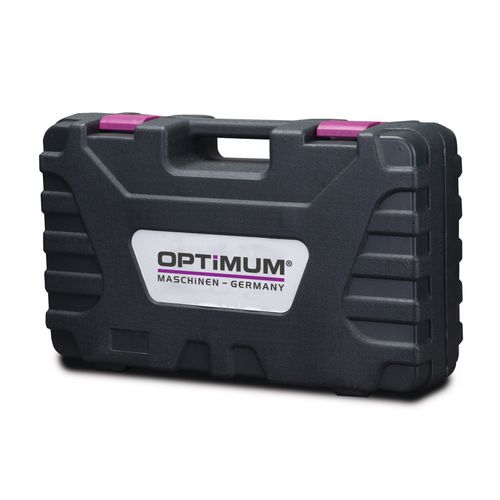

- Transport case
- Tool

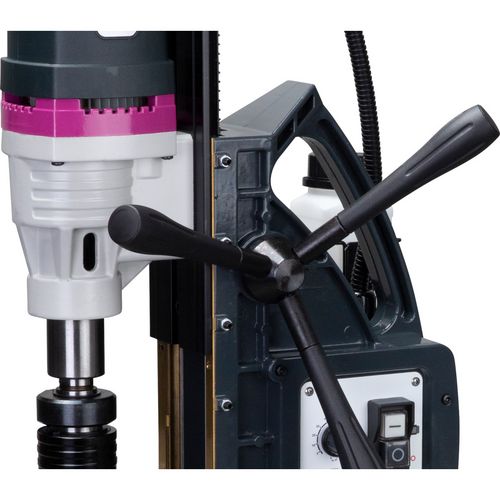

| Spindle sleeve feed | Manual |
