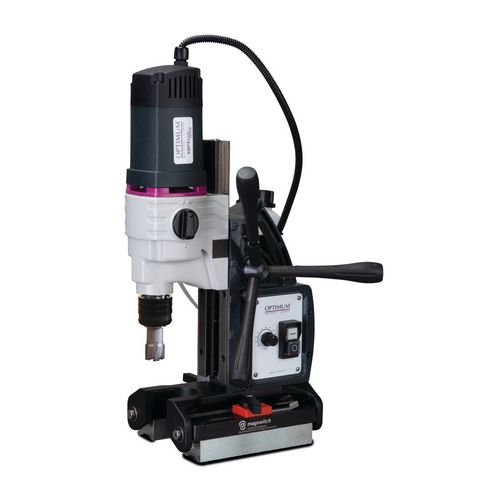

Magnetic core drill
OPTIdrill DM 50PM
With permanent magnet impresses with amazing drilling performance
1.249,00
EUR excl. Tax / pc(s).
1.486,31 EUR incl. 19% Tax / pc(s).
1.486,31 EUR incl. 19% Tax / pc(s).
Promotional price *
1.169,00 EUR excl. Tax / pc(s).1.391,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3071550
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Permanent magnet: current independent and thus 100% safe

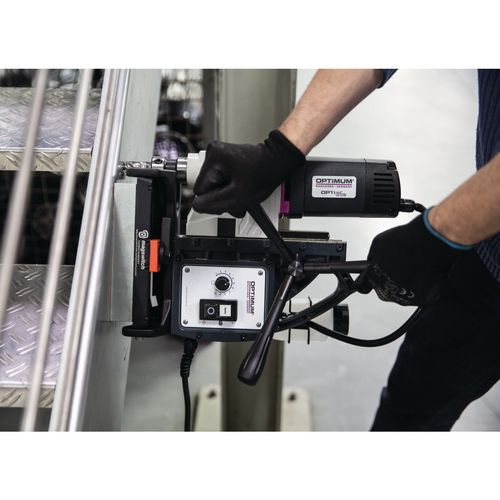

- Magnetic base with high holding force allows for working on vertical surfaces and above head

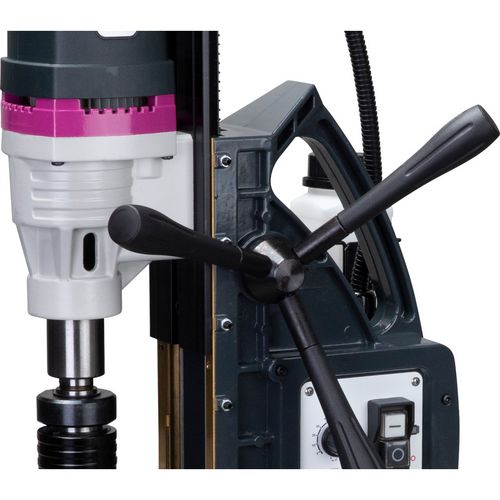

- Stable drill drill guide due to long and low-mounted sleeve holder
- Ideal for the construction site: grounded with dual insulation
- Soft start is gentle on the motor and extends the service life
- Safe switch arrangement

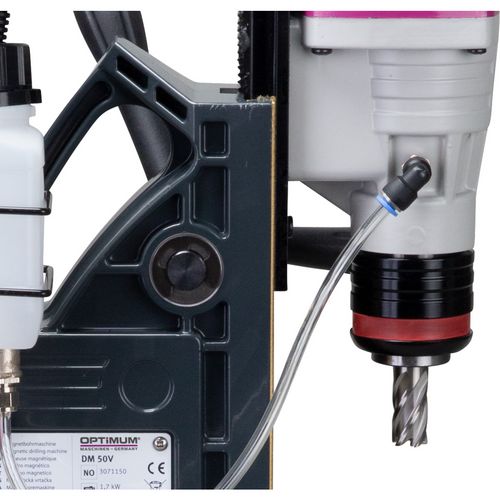

- Automatic internal lubrication: coolant is fed directly to the tip of the core drill
- High quality design
- Internal self-lubricating function for a longer transmission service life
- External coolant tank for easily dosable internal cooling of the core drill
- Conversion from core to full drilling in just a few steps
- Carrying handle for convenient carrying and lifting
Equipment details:

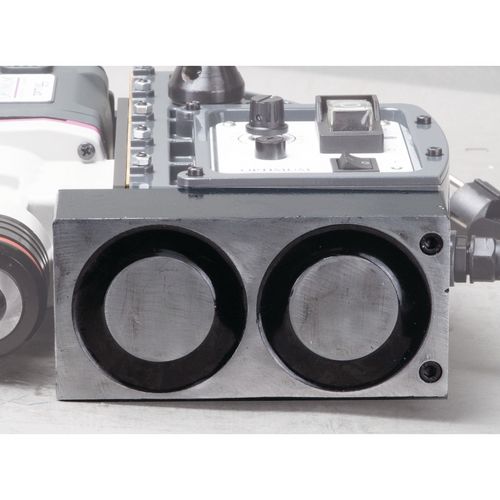

Permanent magnet- Current-independent and thus 100% safe

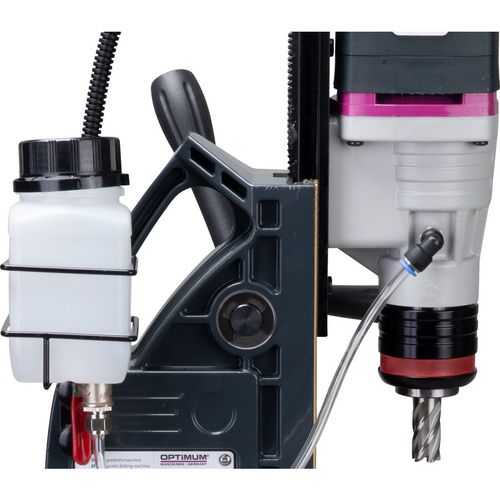

Coolant tank
- removable
- External fastening
- Carefully considered and practical

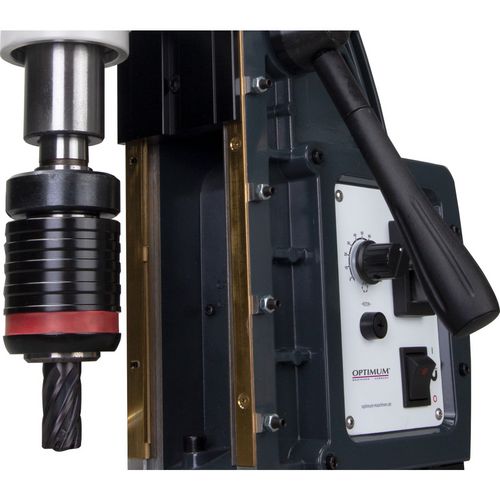

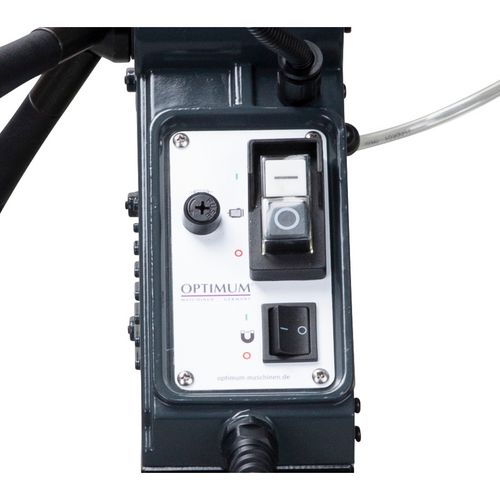

Switch arrangement
- Clear-cut control element
| Collet | |
|---|---|
| Spindle | fixed |
| Drill | Weldon 3/4" |
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 50 mm |
| Max. drilling depth core drilling with manual feed | 50 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 340 mm |
| Width/depth approx. | 250 mm |
| Height approx. | 430 mm |
| Weight approx. | 11.7 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.7 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Full drills | |
|---|---|
| Drill Ø max. full drilling directly mounted | 13 mm |
| Magnet | |
|---|---|
| Holding force | 6.5 kN |
| Magnet base length | 186 mm |
| Magnet base width | 40 mm |
| Speed | |
|---|---|
| Number of gears | 2 |
| Speed range | |
|---|---|
| Idle (CW run) | 20 – 280 / 36 – 510 min¯¹ |
| Speed control | stepless |
| Standards and certifications | |
|---|---|
| EMV-Class | C2 |
| Protection class | IP 42 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

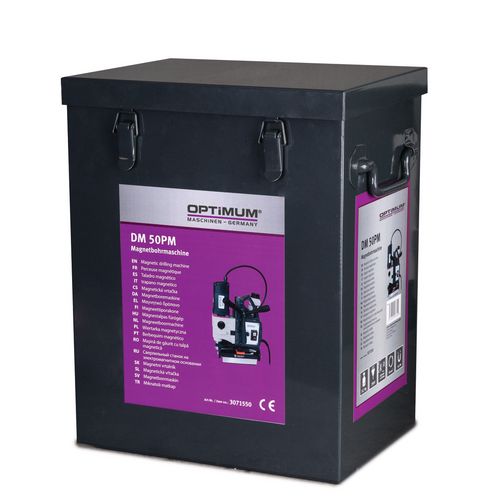

- Metal case
- Coolant tank
- Safety strap
- Tool
| Permanent magnet | ✔ |
| Spindle sleeve feed | Manual |
