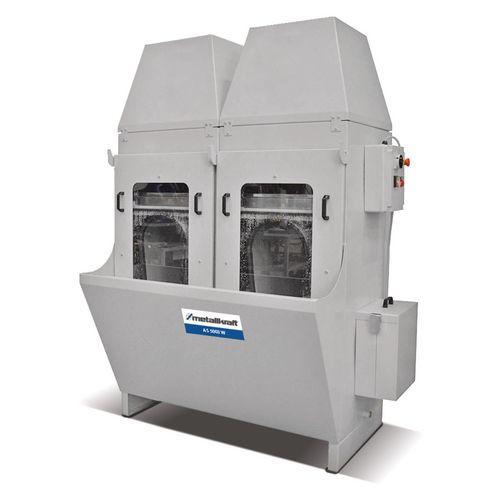

Extraction device for metal grinding machines
with low-noise water filter
12.200,00
EUR excl. Tax / pc(s).
14.518,00
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4421400
Dimensions and weights | |
---|---|
Extraction duct diameter | 300 mm |
Fan wheel diameter | 500 mm |
Max. height | 2390 mm |
Length approx. | 970 mm |
Width/depth approx. | 1134 mm |
Height approx. | 2320 mm |
Weight approx. | 300 kg |
Electrical Data | |
---|---|
Drive motor output | 4,0 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Intake capacity | |
---|---|
with dust bag/hoses | 4000/4500 m³/h |
Noise emission | |
---|---|
Sound pressure level max. | 84 dB(A) |
VPE | 1 |
