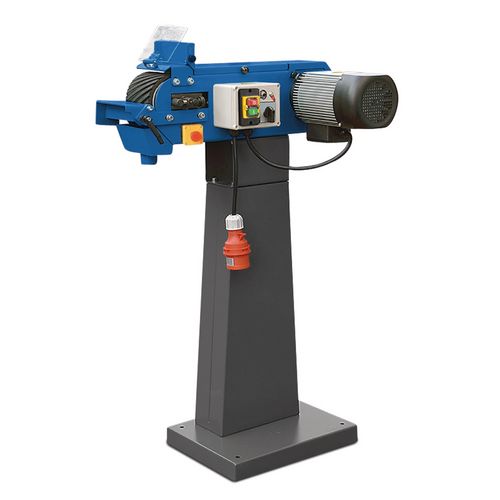

Belt sander
MBSM 100-140-1 (230V)
For sanding surfaces, edges and rounding off
539,00
EUR excl. Tax / pc(s).
641,41
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3923141
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful motors and vibration-free operation for the best sanding results
- Sanding belt can be changed in seconds thanks to the quick-clamping system
- Automatic retensioning of the sanding belt thanks to spring-supported belt tensioning system
- Large surface sanding area thanks to fold-away upper sanding belt cover
- Easy adjustment of the belt run via adjusting screw on the front contact roller
- Continuous sanding surface after removal of attachments enables sanding of long workpieces as well
- Can be used with and without suction
- One extraction nozzle on the spark box and one on the rear belt roller
- Protective screen can be folded away

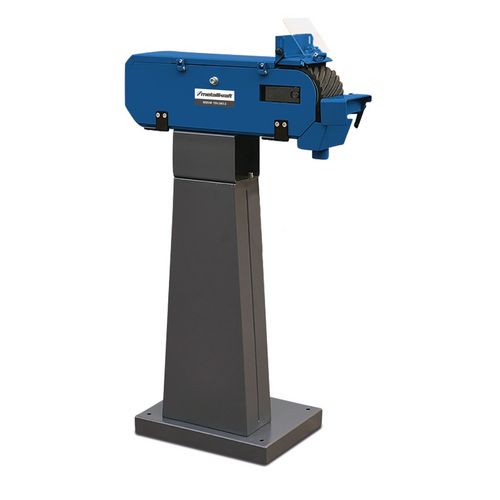

- Can be used as a table model and, with the optional base, also as a floor model
- Changing the sanding belt in seconds due to the quick-release system
- Automatic re-tensioning of the sanding belt using the spring-loaded belt tensioning system
- Easy adjustment of the belt run using the adjusting screw
- Can be used as a table model and also as a standing model with the optional base
| Dimensions and weights | |
|---|---|
| Length approx. | 640 mm |
| Width/depth approx. | 450 mm |
| Height approx. | 420 mm |
| Weight approx. | 39 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Extraction duct nominal width outside | 2 x 75 mm |
| Noise emission | |
|---|---|
| Emissions sound pressure level at workstation Lp (idling without extraction unit) | 87 dB(A) |
| Sanding machine | |
|---|---|
| Max. sanding width | 100 mm |
| Sanding belt length | 1220 mm |
| Sanding belt width | 100 mm |
| Graphite support length | 285 mm |
| Graphite support width | 100 mm |
| Graphite support thickness | 2 mm |
| Circumferential belt speed(s) | 20 m/s |
| Drive wheel diameter | 140 mm |
| Contact wheel diameter | 127 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1 Sanding belt K80
- 1 Socket wrench
