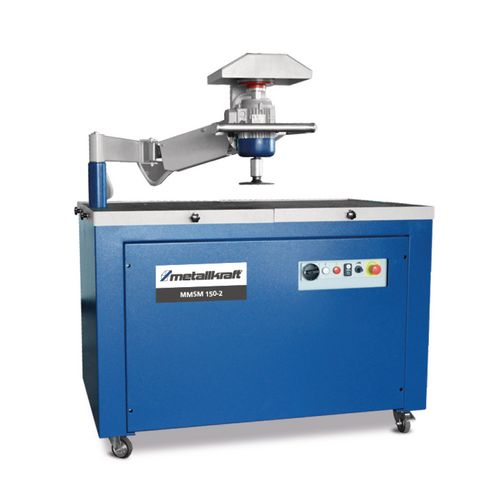

    Manual grinding machine

    MMSM 150-2

    for deburring and surface refinement of individual parts and for cleaning of flame-cut parts

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 4401100

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Particularly suitable for fast and easy machining of individual parts with different shapes and material thicknesses
    • Operation via swivel arm

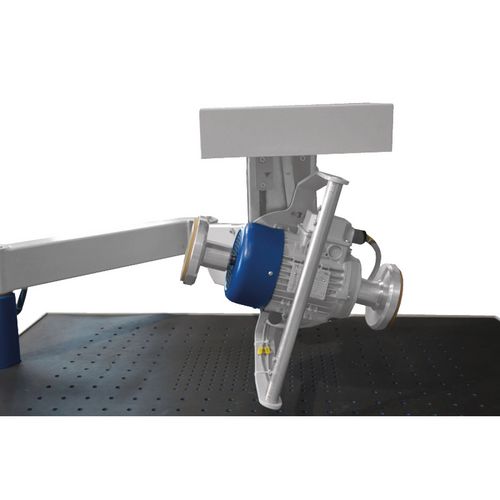

    • Working head can be equipped with two tools, e.g. grinding wheel and brushes, tool change during machining by 180° swivelling of the head
    • Simple fixing of the workpieces on the vacuum clamping table



    • Operation via swivel arm
    • Quick and easy machining
    • Equipping the working head with two toolsckbar, tool change during machining by 180° swivelling of the head
    • Easy fixing of the workpieces on the vacuum clamping table



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Application scope
    Deburring✔
    Edge rounding✔
    Remove oxide layer✔
    Dimensions and weights
    Space requirement1500 x 1000 mm
    Length approx.1310 mm
    Width/depth approx.900 mm
    Height approx.1500 mm
    Weight approx.340 kg
    Electrical Data
    Input power0,75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction
    Extraction duct nominal width outside150 mm
    Sanding machine
    Grinding disc diameter150 mm
    Work table
    Work table length800 mm
    Work table width1300 mm
    Table load max.100 kg
    Workpiece
    Workpiece height min.0,5 mm
    Workpiece height max.150 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1 x Scotch brush
    • 1 x sanding sheet Ø 150 mm, K150
