Cylindrical grinding machine

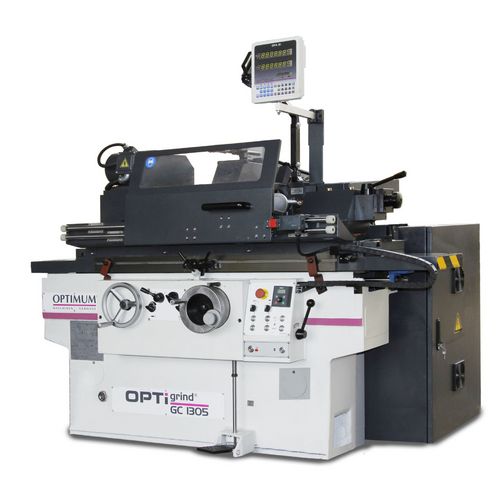

OPTIgrind GC 1305
High-precision cylindrical grinding machine with automatic infeed and digital position indicator DPA 31
31.660,00
EUR excl. Tax / pc(s).
37.675,40
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3121040
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy, one-piece, heavily ribbed and wide machine bed
- Induction-hardened and ground guideways
- Solid headstock with high-precision, tapered roller bearing main spindle impresses with outstanding stability under load
- Very smooth running at maximum spindle speed
- All gears are large, hardened and ground

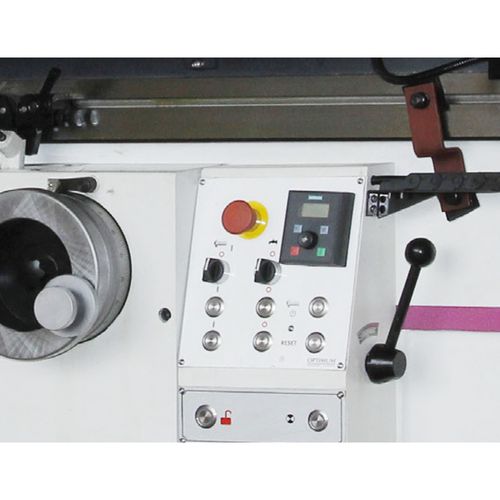

- Joystick control for X and Z feed directly on the support
- Manually shifted 4-step countershaft gearbox, high-quality frequency control technology
- Rapid traverse for X- and Z-axis enables fast positioning of the support and reduces non-productive time
- Adjustable overload clutch in the lock box protects the feed mechanism from damage and failure

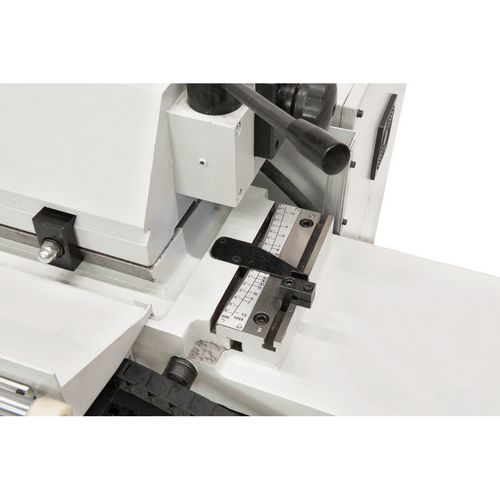

- The table can be tilted for conical sanding processes - the scale enables precise adjustment to the desired position

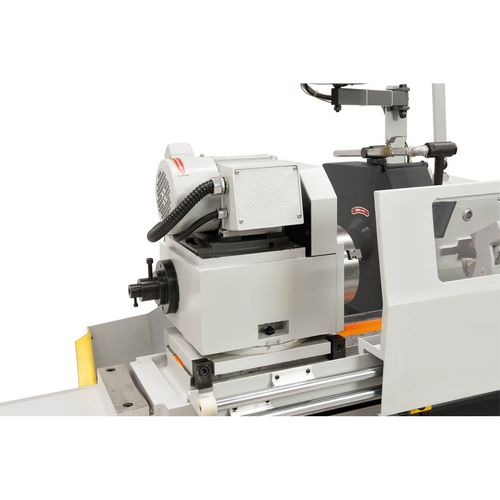

- The spindle head tilts from 0 to 90° for conical sanding operations
- The longitudinal guide of the table and the cross guide of the sanding spindle material are each equipped with V and flat guides
- The sanding spindle has bearings on both sides and adjustable flat grids
- Swivel spindle shaft (up to 180°) for internal sanding work

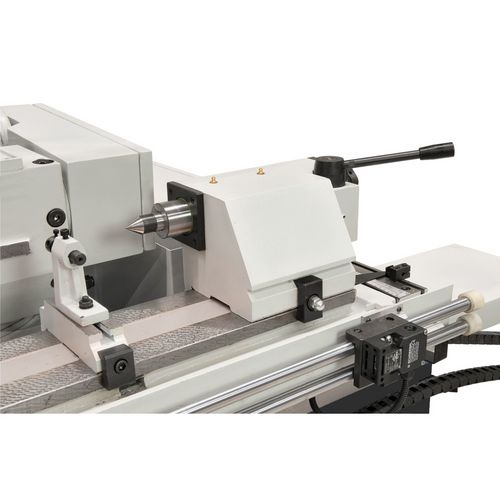

| Tip height | 135 mm |
| Work table travel max. | 640 mm |
| Grinding length | 500 mm |
| Grinding diameter without steady rest | 8 200 mm |
| Grinding diameter with steady rest | 8 60 mm |
| Grinding diameter without bezel inside | 25 100 mm |
| Grinding diameter with internal bezel | 35 100 mm |
| Internal grinding depth | 125 mm |
| Workpiece weight between the tips max. | 50 kg |
| Swivel range of the worktable Right / Left | +3 / -9 ° |
| Stepless table feed in the longitudinal axis | 0.1 4 mm |
| Travel per revolution of the handwheel | 1 mm |
| Travel per graduation mark of the handwheel | 0.005 mm |
| Work spindle Speed range | 25 380 min¯¹ |
| Headstock swivel range | 0 45 ° |
| Spindle taper | MT 4 |
| Tailstock taper | MT 4 |
| Traverse path quills | 25 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 2250 mm |
| Width/depth approx. | 1600 mm |
| Height approx. | 1500 mm |
| Weight approx. | 2200 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
