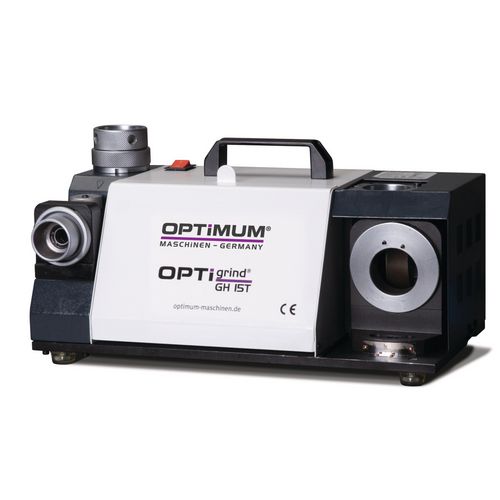

OPTIgrind GH 15 T

The handy models - ideal for grinding twist drills

1.550,00 EUR excl. Tax / pc(s).
1.844,50 EUR incl. 19% Tax / pc(s).

Promotional price *

1.299,00 EUR excl. Tax / pc(s).
1.545,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.

Art.-No. 3100115

Are you interested in this product?

Put a request

Find Trader

Productdetails

Easy operation for precise and cost-effective grinding of double-edged twist drills
Drill loops with no previous knowledge - clean, fast and precise
Easy to transport
Complete equipment with ER collets in the interior of the machine
The cutting edges of the drill are fixed in the collet holder by means of the adjusting aid in a defined position and introduced in a predetermined order in the grinding openings to grind the blades with a short rotational movement of the collet holder

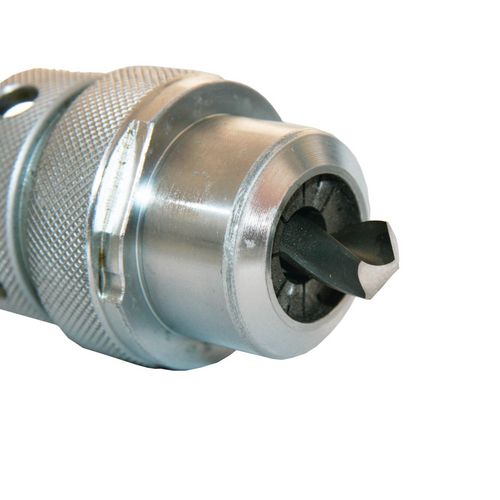

drill

with blunt cutting

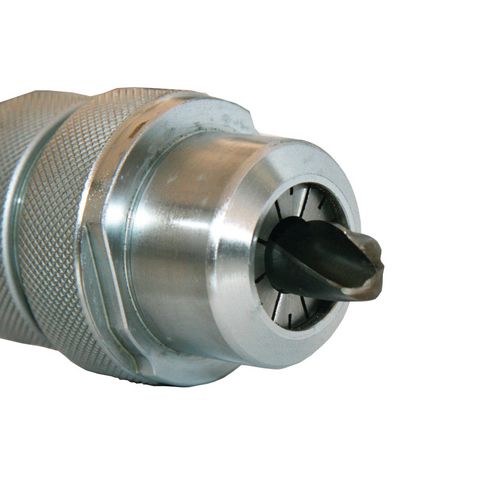

honed and pointed

Speed	5000 min¯¹
Grinding capacity drill diameter	3 – 30 mm
Tip sharpening angle	90 – 145 °
VPE	1

Dimensions and weights
Length approx.	450 mm
Width/depth approx.	240 mm
Height approx.	270 mm
Weight approx.	33 kg

Electrical Data
Drive motor output	0,45 kW
Supply voltage	230 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

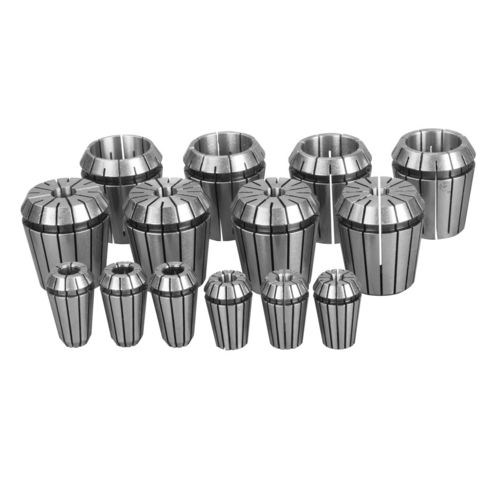

6 pieces collets ER 20 sizes Ø 3 to Ø 8 mm
22 pieces collets ER 40 sizes Ø 8 to Ø 30 mm
