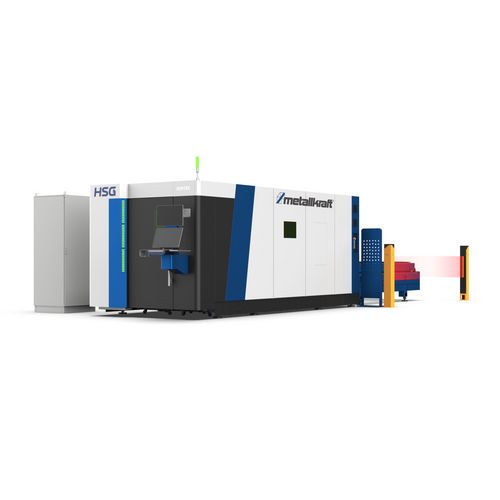

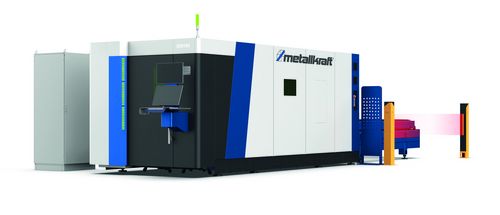

Sheet metal-laser cutting machine with double exchange platforms
GX 3015X 3kW
Simultaneous cutting and machine set-up - Maximum efficiency
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650000
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Fully protected work area ensures maximum safety - A viewing window and video monitoring allow visual control of the cutting process.

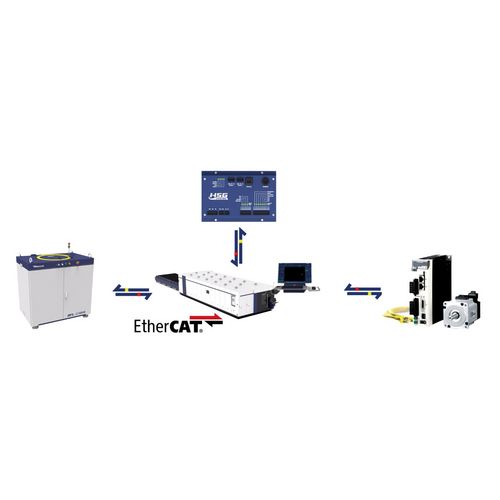

- Stable, welded machine bed in combination with highly dynamic drive systems from Innovance® and Alpha Wittenstein® ensure maximum process accuracy.
- High-quality laser sources from the renowned manufacturer Raycus® ensure maximum beam quality and process reliability.
- Intelligent extraction system: Position-controlled extraction flaps ensure maximum extraction performance
- Extremely simple machine operation thanks to the intelligent AlphaT Plus® control system
- Offline nesting software Cypnest Professional™ from the renowned manufacturer BOCHU® included in the scope of delivery as a lifetime license
| Max. travel X-axis | 1524 mm |
| Max. travel Y-axis | 3048 mm |
| Max. travel speed | 140 m/min |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 800 kg |
| VPE | 1 |
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 18 mm |
| Material thickness max. stainless steel | 10 mm |
| Material thickness max. aluminum | 8 mm |
| Material thickness max. brass | 6 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 10050 mm |
| Width/depth approx. | 4920 mm |
| Height approx. | 2200 mm |
| Weight approx. | 5700 kg |
| Electrical Data | |
|---|---|
| Laser power | 3.0 kW |
| Input power | 42.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
