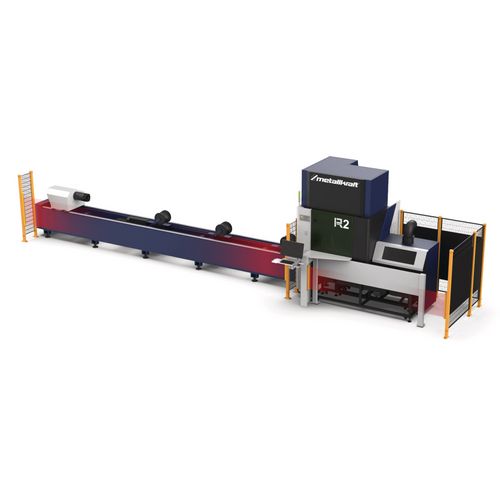

Laser cutting machine
R2 6kW Raycus
Flexible tube laser cutting machine
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4660055
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for different profiles: round and square pipes, L-profile and H-profile from 12-240mm diameter
- High-quality components from the market leaders in their industry
- Laser source from Raycus, one of the best-known manufacturers of efficient and high-quality laser sources that achieve high output powers
- Tube support mechanism fitted as standard ensures high precision tube cutting
- High dimensional accuracy due to automatic clamping and positioning systems
- Supports CAD/CAM programs for easy data integration
- Various clamping jaw systems for flexible tube types
- Nesting software for maximum material utilization
- Can be integrated into Industry 4.0 solutions and production systems
- Suitable for different profiles: round and square tubes, L-profile and H-profile from 12-240mm diameter
- Efficient, high-quality laser source from Raycus
- Tube support mechanism fitted as standard
- High dimensional accuracy thanks to automatic clamping and positioning systems
- Supports CAD/CAM programs
- Various clamping jaw systems
- Nesting software for maximum material utilization
| Max. travel Y-axis | 440 mm |
| Max. travel Z-axis | 360 mm |
| Max. travel speed | 120 m/min |
| Workpiece size round tube | 12 – 240 mm |
| Workpiece size square tube | 12 – 240 mm |
| Position accuracy | ± 0,05 mm/m |
| Max. machine table load | 300 kg |
| Acceleration | 1.2 G |
| VPE | 1 |
| Electrical Data | |
|---|---|
| Laser power | 6 kW |
| Input power | 46 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
