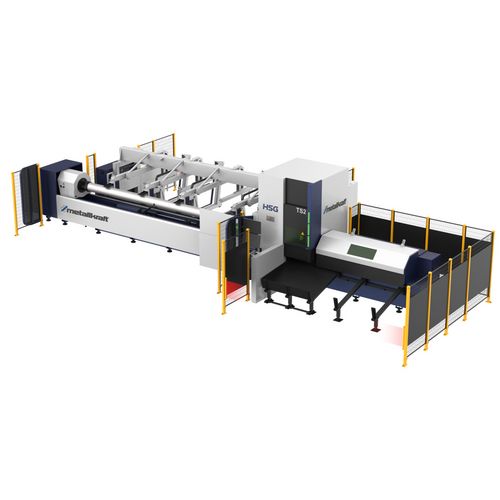

    • Productimage for T2 6kW
    • Productimage for T2 6kW
    • Productimage for T2 6kW
    • Productimage for T2 6kW
    • Productimage for T2 6kW
    • Productimage for T2 6kW
    • Productimage for T2 6kW
    • Productimage for T2 6kW
    Brandimage to Product T2 6kW

    Tube laser cutting systems with drilling and threading function

    T2 6kW

    for processing tubular components

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 4660025

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Extended production options thanks to integrated drilling and tapping function - Saves additional machining steps and maximizes efficiency
    • Tool magazine with automatic tool changer enables various applications

    Technical features:

    • High-performance tube laser cutting system for maximum output
    • Suitable for all standard pipes, beams, rectangular profiles and flat steel up to a maximum diameter of 273 mm
    • Many optional equipment options
    • High-quality components from the market leaders in their sector
    • Precise and highly dynamic drive systems from Rexroth® and Sanyo Denki®
    • Intelligent, high-precision cutting chucks regulate centering and clamping force fully automatically and ensure a trouble-free cutting process. Integrated measuring systems completely prevent incorrect loading.
    • Control system: HSG X9000
    • High-quality laser sources from the renowned manufacturer Raycus® ensure the highest beam quality and process reliability.



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Rotating Speed of Chucks120 U/min
    Workpiece size round tubeØ12 – 254 (max. 273) mm
    Workpiece size square tube20 x 20 – 200 x 200 mm
    Position accuracy± 0.03 mm/m
    Weight of Single Tube200 kg
    Acceleration1.2 G
    Repositioning Accuracy± 0.03 mm
    VPE1
    Dimensions and weights
    Length approx.12500 mm
    Width/depth approx.4700 mm
    Height approx.2600 mm
    Weight approx.9500 kg
    Electrical Data
    Laser power6 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Cooling unit
    • Stabilizer
    • Protective device / light barriers
