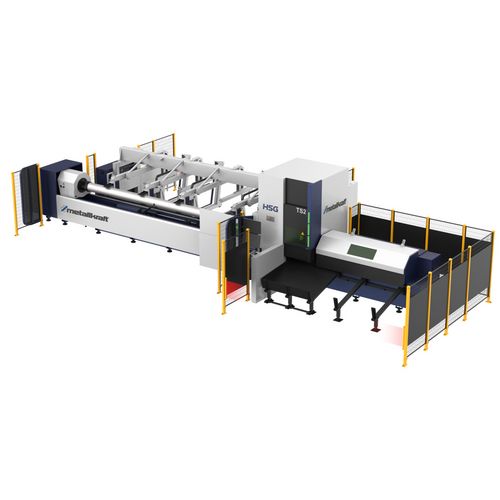

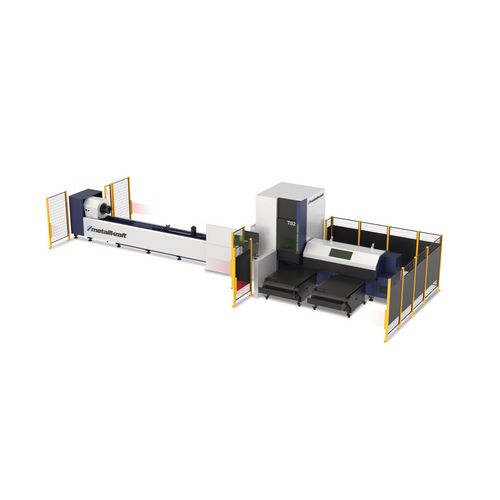

Laser cutting machine
TS2 3kW
for classic applications
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4660000
Are you interested in this product?
Put a request
Find Trader
Productdetails
- High-performance tube laser cutting system for maximum output
- Suitable for all standard pipes, beams, rectangular profiles and flat steel up to a maximum diameter of 273 mm
- Many optional equipment options
- High-quality components from the market leaders in their sector
- Precise and highly dynamic drive systems from Rexroth® and Sanyo Denki®
- Intelligent, high-precision cutting chucks regulate centering and clamping force fully automatically and ensure a trouble-free cutting process. Integrated measuring systems completely prevent incorrect loading.
- Control system: HSG X9000
- High-quality laser sources from the renowned manufacturer Raycus® ensure the highest beam quality and process reliability.

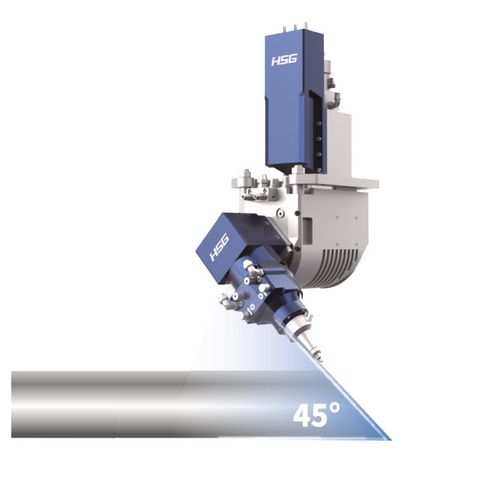

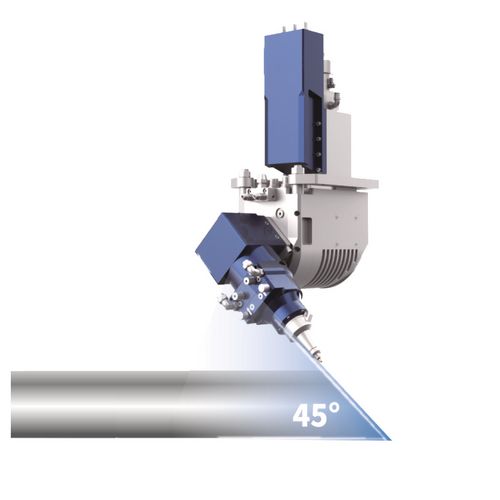

- Optionally also available with bevel head, which enables 45° bevel and angle cuts with 3D laser head
| Max. travel speed | 140 m/min |
| Workpiece size round tube | 20 – 273 mm |
| Workpiece size square tube | 20 – 200 mm |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 200 kg |
| VPE | 1 |
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 20 mm |
| Material thickness max. stainless steel | 8 mm |
| Material thickness max. aluminum | 8 mm |
| Material thickness max. brass | 6 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 12500 mm |
| Width/depth approx. | 3000 mm |
| Height approx. | 2600 mm |
| Weight approx. | 9500 kg |
| Electrical Data | |
|---|---|
| Laser power | 3.0 kW |
| Input power | 65.0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
