| Dimensions and weights | |
|---|---|
| D (Chuck) | 100 mm |
| D1 | 72 mm |
| D2 | 84 mm |
| D3 | 22 mm |
| d | M8 |
| H (Chuck) | 75 mm |
| H1 | 55 mm |
| h | 3.5 mm |
| Weight approx. | 3.3 kg |

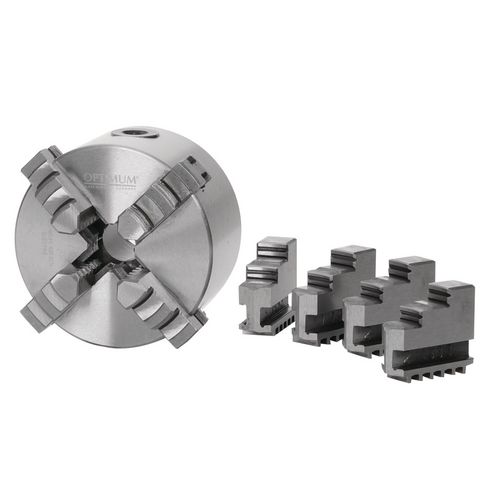

Four-jaw lathe chuck, concentric clamping
Ø 100 mm
165,00
EUR excl. Tax / pc(s).
196,35
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3442810
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Chuck made of cast iron
- With cylindrical center mount according to DIN 6350
- Incl. chuck key
- Concentricity better than 0.05 mm
- Feed flange required
| Speed | |
|---|---|
| Rotation Speed | 3400 min¯¹ |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
chuck key
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
