Horizontal metal band saw

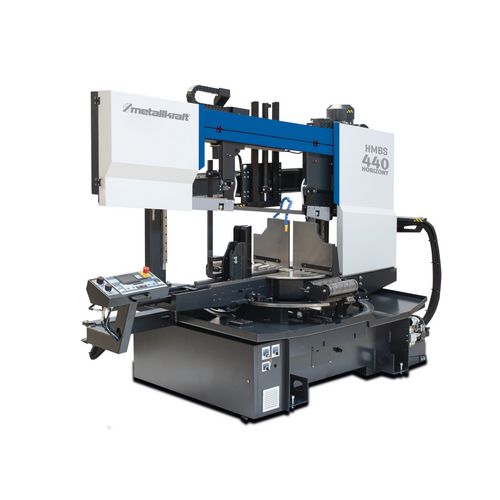

HMBS 440 HA DG HORIZONT
Semi-automatic horizontal saw for miter cuts from +60° to -60° with Mitsubishi control system
41.850,00
EUR excl. Tax / pc(s).
49.801,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3692100
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Mitsubishi FX 5 control with easy operation via 4.3" touch screen
- Cutting movement via hydraulic cylinders
- With BRP (cutting feed control) -> when a set ampere limit is exceeded, the feed motion is stopped while the saw band continues to run to convey chips out of the cutting channel. After reaching the normal load, the sawing process is continued
- Automatic positioning after entering the desired angle

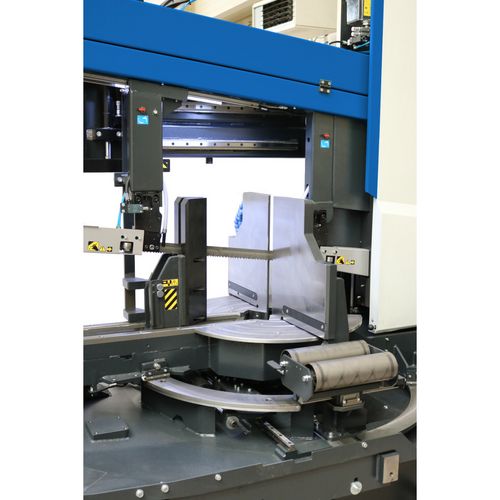

- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and smallest possible distances between saw blade, machine guide and workpiece minimize vibrations for highest sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw band is driven by bevel gear, asynchronous motor and frequency converter
- For straight cuts, material is clamped in front of and behind the cut by a two-part vice
- Pressure adjustment of the hydraulic vice tension via control valve with manometer
- Saw blade inclination of 7° and hydraulic saw blade tensioning increase the service life of the saw blade
- front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven by band roller
- Emulsion cooling with liquid distribution into the saw band guides and directly into the cutting channel
- More powerful motor optionally available
| Cutting ranges | |
|---|---|
| 0° round (pipe) | 440 mm |
| 0° round (full material) | 300 mm |
| 0° rectangle horizontal (hollow) | 610 x 385 mm |
| 0° bundle (pipe) | 610 x 350 mm |
| 0° bundle rectangle horizontal (hollow) | 610 x 350 mm |
| -45° round (pipe) | 430 mm |
| -45° round (full material) | 220 mm |
| -45° rectangle horizontal (hollow) | 430 x 385 mm |
| -60° round (pipe) | 290 mm |
| -60° round (full material) | 150 mm |
| -60° rectangle horizontal (hollow) | 290 x 385 mm |
| +45° round (pipe) | 430 mm |
| +45° round (full material) | 200 mm |
| +45° rectangle horizontal (hollow) | 430 x 385 mm |
| +60° round (pipe) | 290 mm |
| +60° round (full material) | 150 mm |
| +60° rectangle horizontal (hollow) | 290 x 385 mm |
| Dimensions and weights | |
|---|---|
| Work table height | 810 mm |
| Length approx. | 4341 mm |
| Width/depth approx. | 1756 mm |
| Height approx. | 2225 mm |
| Weight approx. | 2080 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4 kW |
| Engine power hydraulic pump | 0.75 kW |
| Engine power coolant pump | 0.12 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 15 - 150 m/min |
| Speed levels | Infinitely adjustable |
| Saw band length | 6060 mm |
| Saw band width | 34 mm |
| Saw band thickness | 1.1 mm |
| Cutting angle | 7 ° |
| Material feed | |
|---|---|
| Cut-off length min. | 25 mm |
| Material diameter min. | 10 mm |
| Min. residual workpiece length | 25 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Control | Mitsubishi FX 5 with 4.3" touchscreen |
| Coolant pump | ✔ |
| Belt tension monitoring | Hydraulic saw band tensioning |
| Belt feed monitoring | BRP |
| Saw feed | hydraulic |
| Saw return stroke | hydraulic |
| Control panel | swivable |
| Chip clearing brush | driven via belt roller |
| Vise | two-part in front and behind the cut / hydraulic pressure adjustment |
| Work area lighting | LED |
