| Cutting ranges | |
|---|---|
| 0° round (full material) | 225 mm |
| 0° quadratic (full material) | 190 mm |
| 0° rectangle horizontal (full material) | 150 x 245 mm |
| +45° round (full material) | 145 mm |
| +45° quadratic (full material) | 150 mm |
| +45° rectangle horizontal (full material) | 190 x 150 mm |
| +60° round (full material) | 90 mm |
| +60° quadratic (full material) | 90 mm |
| +60° rectangle horizontal (full material) | 120 x 90 mm |
Metal band saw
OPTIsaw SD 280V

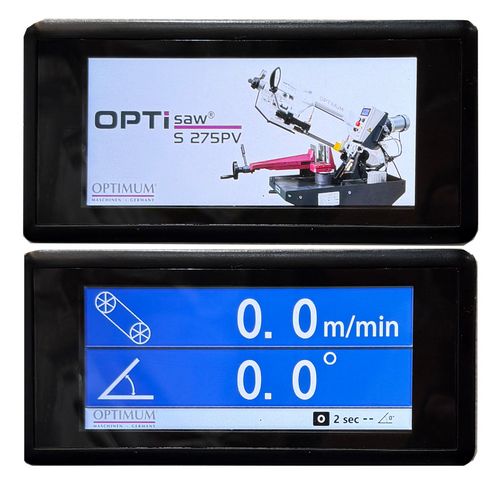

With a swivelling saw arm and digital display for cost-effective and precise work
2.990,00
EUR excl. Tax / pc(s).
3.558,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3305285
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Inverter drive for infinitely variable speed control
- Carbide guide and roller guide
- Replaceable clamping jaws
- Low-noise operation
- Sturdy cast iron construction</ li>
- High cutting accuracy thanks to vibration-free operation
- Infinitely adjustable lowering of the saw frame via a hydraulic cylinder with throttle valve
- Microswitch for automatic end-of-stroke shut-off
- Coolant system
- Adjustable material stop</ li>
- Easy-to-read scale for angle adjustment
- Overload protection
- Robust machine base with door and shelf
| Dimensions and weights | |
|---|---|
| Width without material stop approx. | 685 mm |
| Width with material stop approx. | 985 mm |
| Height lower end position approx. | 1235 mm |
| Height upper end position approx. | 1700 mm |
| Length approx. | 1400 mm |
| Weight approx. | 185 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Engine power coolant pump | 90 W |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 20 – 90 m/min |
| Saw band length | 2480 mm |
| Saw band width | 27 mm |
| Saw band thickness | 0.9 mm |
| Cutting angle from to | 0 60 ° |
| Feed | infinitely variable |
| Lifting the saw bow | manual |
| Manufacturer infos | |
|---|---|
| Manufacturer | Optimum Maschinen Germany GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@optimum-maschinen.de | |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
