    Pure air dust extractor

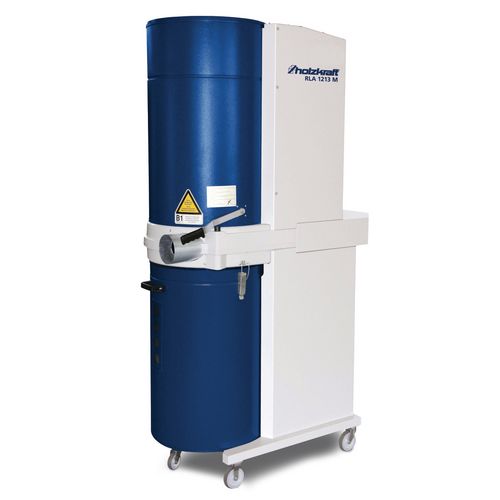

    RLA 1213 M

    Dust-tested to H3 with 100% air return for commercial use, M version with automatic filter cleaning

    5.799,00 EUR excl. Tax / pc(s).
    6.900,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    5.299,00 EUR excl. Tax / pc(s).
    6.305,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5131202

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • High-performance bag filter with special surface coating
    • Filter of category M
    • Dust tested to H3, residual dust content < 0.1 mg / m³
    • Large dimensioned filling container for easy and quick replacement of chip bags extendable
    • Level controlled by a sight glass
    • Approved as industrial vacuum cleaner in conjunction with a floor cleaning set
    • Reduced power consumption at full suction power and economical consumption thanks to optimized air flow and high-performance fan with backward-curved impeller arranged on the clean air side
    • With aerodynamically sophisticated housing
    • Optimum pre-separation by a cyclone already in the intake area
    • Filters with large folds, therefore easy to clean, so that highest filter life is achieved and only very low maintenance and operating costs
    • Filter cleaning via a hand lever
    • M version with automatic filter cleaning
    • Due to its low weight, swivel castors and large handles, it can be used quickly and efficiently at various workstations



    Dimensions and weights
    Chip collection volume135 l
    Extraction duct inlet outside nominal width120 mm
    Length approx.1178 mm
    Width/depth approx.650 mm
    Height approx.1973 mm
    Weight approx.121 kg
    Electrical Data
    Suction motor efficiency classIE3
    Drive motor output1,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area5.1 m²
    Residual dust content< 0.1 mg/m³
    Noise emission
    Max. sound pressure level75 dB(A)
    Volume flow
    Rated volume flow814 m³/h
    VPE1
    Unit: pc(s).
    Packaging unit: 1
