| Dimensions and weights | |
|---|---|
| Length approx. | 450 mm |
| Width/depth approx. | 330 mm |
| Height approx. | 1080 mm |
| Weight approx. | 46 kg |

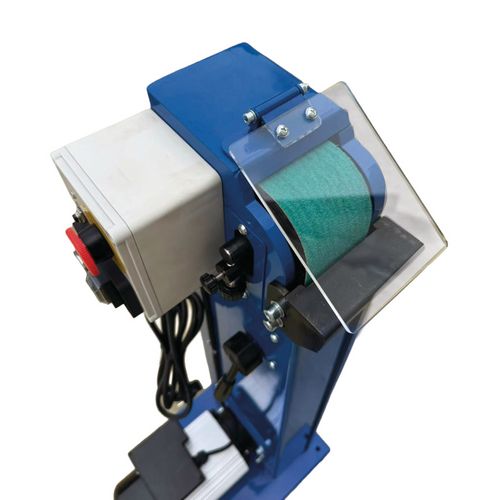

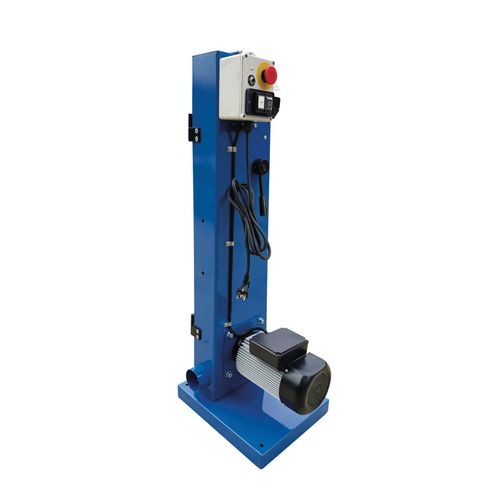

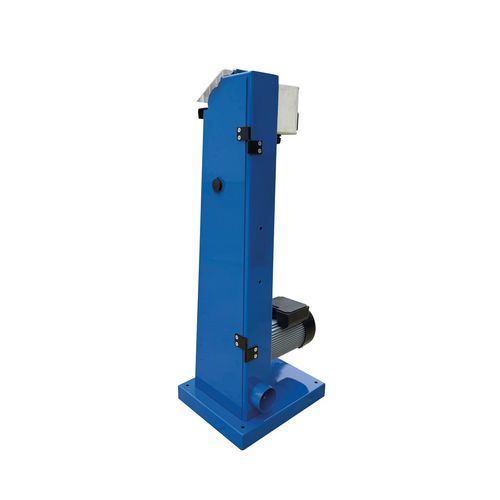

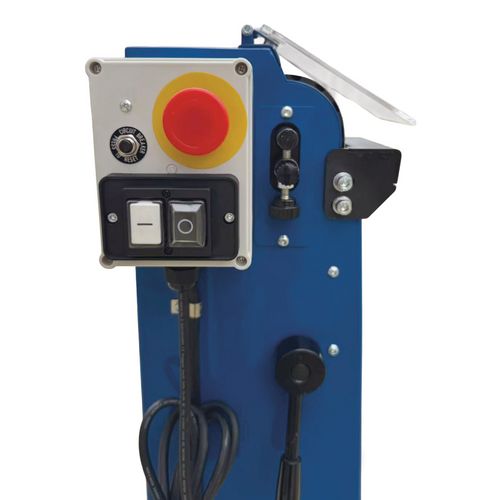

Vertical metal band sander
MBSM 75-201-1 V
Vertical metal belt grinding machine for grinding and rounding
639,00
EUR excl. Tax / pc(s).
760,41 EUR incl. 19% Tax / pc(s).
760,41 EUR incl. 19% Tax / pc(s).
Promotional price *
599,00 EUR excl. Tax / pc(s).712,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2027 in Germany.
Art.-No. 3925071
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Particularly space-saving thanks to its vertical design
- With a powerful motor for high sanding performance
- Virtually vibration-free operation for the best sanding results
- Can be used with or without dust extraction
- Easy adjustment of the belt tension via an adjustment screw</ li>

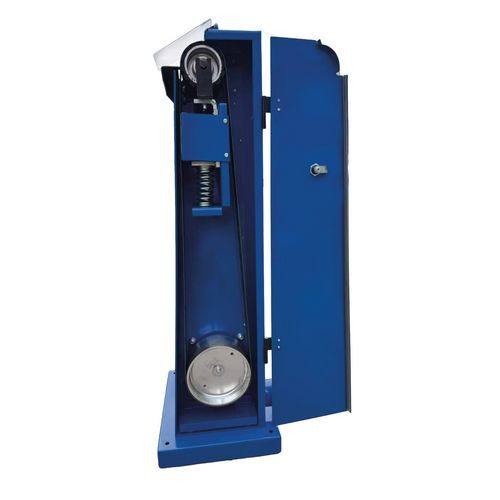

- Automatic belt tensioning via spring-assisted belt tensioning system
- Fold-away safety guard
| Electrical Data | |
|---|---|
| Drive motor output | 1.1 kW |
| Motor speed(s) | 2800 min¯¹ |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Extraction duct nominal width outside | 76 mm |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| Noise emission | |
|---|---|
| Emissions sound pressure level at workstation Lp (idling without extraction unit) | 85 dB(A) |
| Sanding machine | |
|---|---|
| Sanding belt length | 2000 mm |
| Sanding belt width | 75 mm |
| Circumferential belt speed(s) | 26 m/s |
| Drive wheel diameter | 180 mm |
| Contact wheel diameter | 102 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
