| Electrical Data | |
|---|---|
| Supply voltage | 400 V |

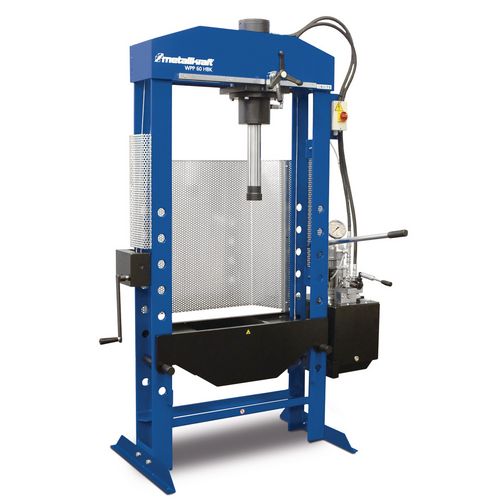

Hydraulic workshop press
WPP HBK
Heavy duty with moving piston and two piston speeds
From
6.529,00
EUR excl. Tax / pc(s).
From 7.769,51 EUR incl. 19% Tax / pc(s).
From 7.769,51 EUR incl. 19% Tax / pc(s).
Promotional price *
From 6.299,00 EUR excl. Tax / pc(s).From 7.495,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Hydraulic system | Price | Promotional price * | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Piston stroke (mm) | Piston travel (mm) | Lowering speed (mm/s) | Press speed (mm/s) | VPE | Clear width (mm) | Max. installation height (mm) | Frame depth (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | Mains frequency (Hz) | Hydraulic oil tank capacity (l) | Hydraulic oil operating capacity (l) | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| WPP 60 HBK | 4013060 | 60 | 300 | 450 | 10 | 1.5 | 1 | 790 | 1000 | 180 | 1350 | 650 | 2290 | 570 | 1,5 | 50 | 30 | 20 | 6.299,00 | 7.495,81 | |||
| WPP 100 HBK | 4013100 | 100 | 320 | 550 | 10 | 1.5 | 1 | 1030 | 1000 | 265 | 1600 | 850 | 2280 | 1205 | 1,5 | 30 | 25 | 9.259,00 | 11.018,21 | ||||
| WPP 100 HBK D 1500 | 4013101 | 100 | 320 | 1000 | 10 | 1.5 | 1 | 1530 | 1000 | 265 | 2100 | 850 | 2280 | 1700 | 1,5 | 30 | 25 | 12.799,00 | 15.230,81 | ||||
| WPP 160 HBK | 4013160 | 160 | 400 | 550 | 10 | 1.5 | 1 | 1020 | 1020 | 300 | 1950 | 1000 | 2450 | 1780 | 1,5 | 30 | 30 | 15.799,00 | 18.800,81 | ||||
| WPP 160 HBK D 1500 | 4013161 | 160 | 400 | 950 | 10 | 1.5 | 1 | 1520 | 1020 | 300 | 2450 | 1000 | 2450 | 2130 | 1,5 | 30 | 30 | 17.499,00 | 20.823,81 | ||||
| WPP 200 HBK | 4013200 | 200 | 400 | 800 | 1.2 | 10 | 1 | 1500 | 1000 | 400 | 2450 | 1100 | 2600 | 3360 | 4 | 150 | 120 | 25.999,00 | 30.938,81 | ||||
Select Attributes
General
- Pressure force
- Piston stroke
- Piston travel
- Lowering speed
- Press speed
- VPE
Dimensions and weights
- Clear width
- Max. installation height
- Frame depth
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
- Mains frequency
Hydraulic system
- Hydraulic oil tank capacity
- Hydraulic oil operating capacity
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails

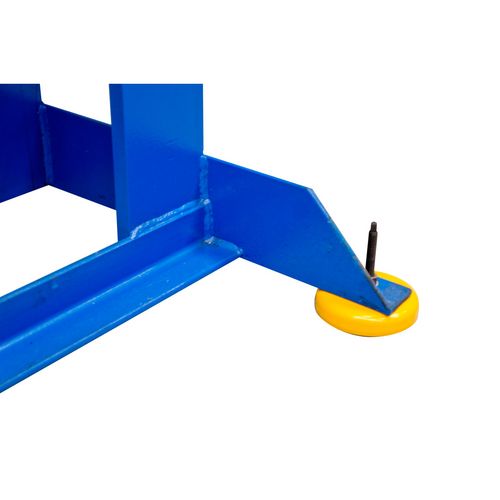

- Increased stability due to improved design of the machine base, cylinder adjustment via handle and hand wheel, manometer on the machine side
- Suitable for assembly and straightening work as well as for workpiece checks or the pressing and pressing of bearings and other components
- Ideal for technical workshops, repair shops and technical training facilities

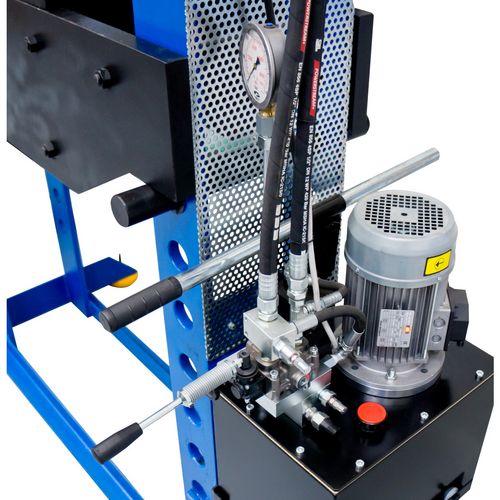

- With two piston speeds and pressure regulation by throttle screw
- Pressure gauge for pressure gauge
- Heavy machine frame welded from steel profiles to absorb the resulting compressive force of the cylinder
- The hydraulics work extremely precisely in both electrical and manual mode

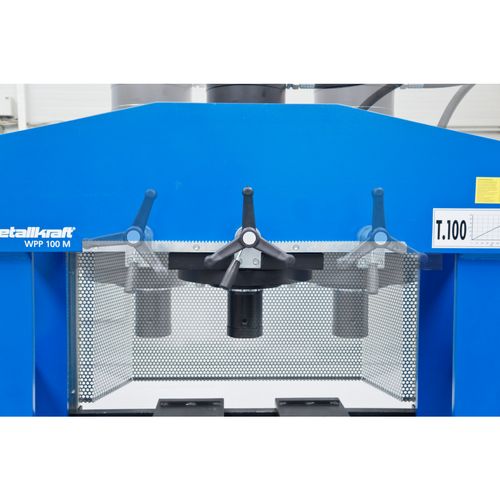

- Adjustment of the cylinder via rack to handwheel
- Heavy and robust welded construction
- More extensive accessories
- Quality made in Europe
