| Piston stroke | 406 mm |
| Piston travel | 406 mm |

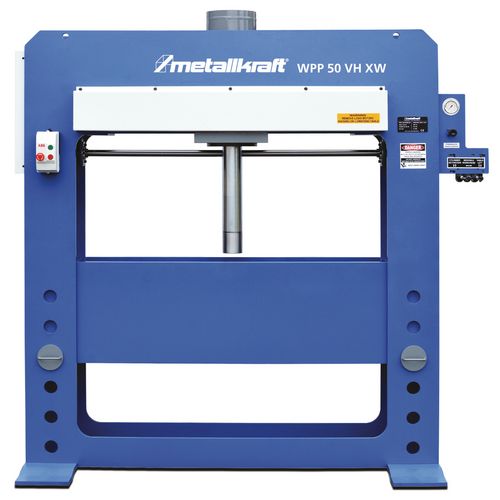

Fully hydraulic workshop press
WPP
Robust construction with movable cylinder
From 15.950,00
EUR excl. Tax / pc(s).
From 18.980,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Lowering speed (mm/s) | Press speed (mm/s) | Return speed (mm/s) | VPE | Diameter cylinder (mm) | Diameter piston rod (mm) | Diameter piston head (mm) | Clear height max. (mm) | Frame depth (mm) | Work table width (mm) | Weight approx. (kg) | Depth without foot | Drive motor output (kW) | EUR excl. Tax | EUR incl. 19% Tax | |
| WPP 50 VH XW | 4050055 | 50 | 6.5 | 6.5 | 8 | 1 | 178 | 76.2 | 178 | 936 | 279 | 273 | 1273 | 3.7 | 15.950,00 | 18.980,50 | ||
| WPP 100 VH XW | 4050105 | 100 | 6.7 | 6.7 | 8.3 | 1 | 228 | 101.6 | 228 | 888 | 317 | 311 | 1728 | 355 | 7,5 | 22.850,00 | 27.191,50 | |
Select Attributes
General
- Pressure force
- Lowering speed
- Press speed
- Return speed
- VPE
Dimensions and weights
- Diameter cylinder
- Diameter piston rod
- Diameter piston head
- Clear height max.
- Frame depth
- Work table width
- Weight approx.
- Depth without foot
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more
- With pressure mandrel adapter for two different pressing diameters of the cylinders
- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table
- Cylinder can be moved laterally via lever
- Pressure-sensitive hand levers for regulating the feed rates
- Pressing pressure readable via manometer
Quality Made in Canada
| Dimensions and weights | |
|---|---|
| Clear width | 1523 mm |
| Hole spacing for table height adjustment | 152 mm |
| Width/depth of machine feet | 914 mm |
| Work table length | 1523 mm |
| Length approx. | 2030 mm |
| Width/depth approx. | 914 mm |
| Height approx. | 2208 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 56 l |
Unit: pc(s).
