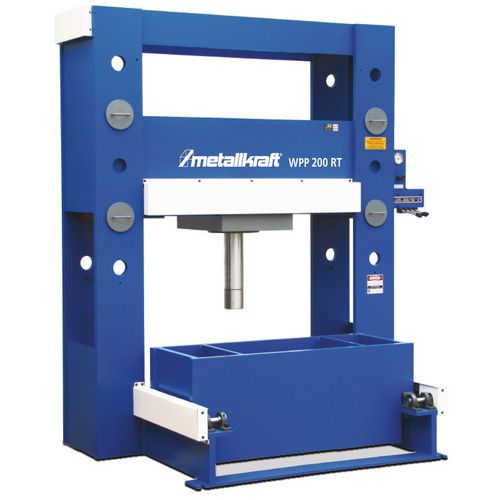

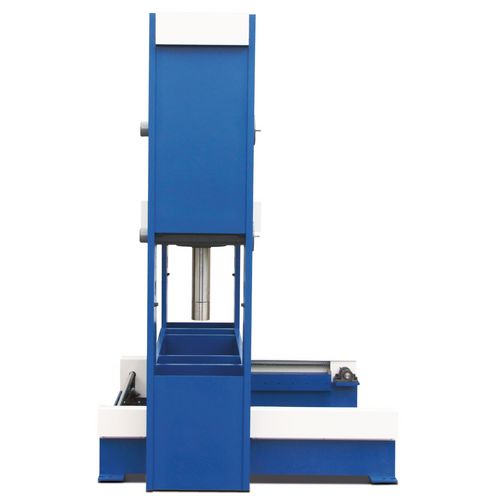

Fully hydraulic workshop press
WPP 200 RT
With movable table for processing heavy and bulky workpieces
40.450,00
EUR excl. Tax / pc(s).
48.135,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4053200
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more
- With pressure mandrel adapter for two different pressing diameters of the cylinders
- Hydraulic control of the stroke, the right / left movement and the upper end position of the cylinder as well as the movement of the workpiece table
- Pressure-sensitive hand levers for regulating the feed rates
- Master cylinder laterally movable via lever
- Pressing pressure readable via manometer
Quality Made in Canada
- Fully hydraulic control of all 4 axes
- Table hydraulically movable
| Pressure force | 200 t |
| Piston stroke | 508 mm |
| Piston travel | 704 mm |
| Lowering speed | 8.5 mm/s |
| Press speed | 2 mm/s |
| Return speed | 10.3 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Depth without foot | 590 mm |
| Work table length | 1523 mm |
| Work table width | 590 mm |
| Width/depth of machine feet | 1777 mm |
| Frame depth | 514 mm |
| Hole spacing for table height adjustment | 305 mm |
| Clear height max. | 787 mm |
| Clear width | 1523 mm |
| Diameter piston head | 305 mm |
| Diameter piston rod | 127 mm |
| Diameter cylinder | 305 mm |
| Length approx. | 2134 mm |
| Width/depth approx. | 1777 mm |
| Height approx. | 2709 mm |
| Weight approx. | 4545 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 76 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
