| Working width | 2050 mm |
| Cutting performance material tensile strength 400 N/mm² | 3 mm |
| Cutting performance material tensile strength 700 N/mm² | 1.5 |
| Explanation to cutting performances | Values for stainless steel (700 N/mm²) can only be reached with optional blade set |
| Number of sheet support arms | 3 St |
| Rear stop adjustment range up to | 630 mm |
| Cutting angle | 2.0 ° |
| Max. strokes for full cutting length | 30 /min |
| VPE | 1 |

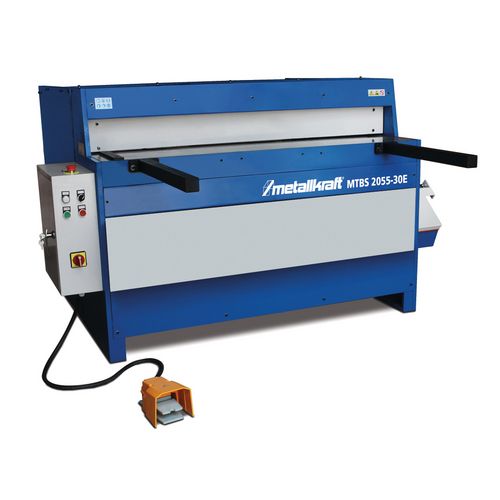

Motorized sheet metal shears
MTBS 2055-30 E
Suitable for cutting metals and other materials
10.590,00
EUR excl. Tax / pc(s).
12.602,10 EUR incl. 19% Tax / pc(s).
12.602,10 EUR incl. 19% Tax / pc(s).
Promotional price *
10.299,00 EUR excl. Tax / pc(s).12.255,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3757023
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for cutting steel and non-ferrous metals
- Heavy, stress-free welded steel construction
- High quality knife
- Sheet metal support arms for large workpieces
- Cut line illumination and long holes in the upper cover plate for an optimal view of the cutting edge for cutting on scratches
- Manual back gauge 630 mm with millimeter precision adjustment
- Photocell for the backgauge area
- The foot control leaves both hands free for the material supply
| Dimensions and weights | |
|---|---|
| Length approx. | 2495 mm |
| Width/depth approx. | 1610 mm |
| Height approx. | 1190 mm |
| Weight approx. | 1520 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Sheet support arms
- side stop
- Manual backgauge
- foot operation
| Number of sheet support arms | 3 St |
