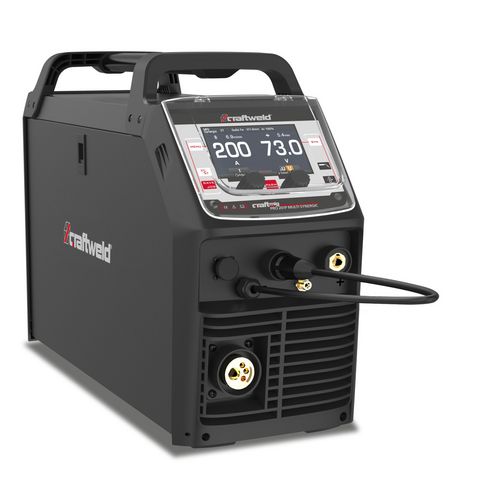

MIG/MAG Inverter welding device
CRAFT-MIG.PRO 201 P Pulse
Modern MIG welding machine for professional use
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1362021
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ultrarobust inverter in state-of-the-art IGBT module design ensures maximum power stability and duty cycle
- Extremely simple operation via high-resolution color display with graphic illustration of the welding curve and setting options
- Synergy characteristic curves: 3-steps to the finished welding result
- Adjustable arc characteristics in synergy and pulse mode
- Professional features such as 4T+ and adjustable double pulse
- CRAFT-MIG 201P Pulse equipped with PFC (power factor correction), also enables optimum use on cable drums
| Cooling | |
|---|---|
| Cooling type | AF |
| Torch cooling | Gas |
| Dimensions and weights | |
|---|---|
| Length approx. | 580 mm |
| Width/depth approx. | 230 mm |
| Height approx. | 400 mm |
| Weight approx. | 25 kg |
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 60 % |
| Current at 60% DC 40°C | 165 A |
| Current at 100% DC 40°C | 130 A |
| Electrical connections | |
|---|---|
| Input current | 20.9 A |
| Power consumption in idle mode | 22 W |
| Electrical Data | |
|---|---|
| Supply voltage | 110/230 V |
| Mains frequency | 50/60 Hz |
| Input | |
|---|---|
| Efficiency | 85 % |
| Setting range | |
|---|---|
| MIG/MAG | 20 200 A |
| TIG DC | 10 200 A |
| Electrode | 10 200 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1; EN 60974-10 |
| EMC class | A |
| Marking | CE |
| Wire feed | |
|---|---|
| weldable wires steel from to | 0.6 1.2 mm |
| weldable wires stainless steel from to | 0.6 1.2 mm |
| weldable wires aluminium from to | 1.0 1.2 mm |
| weldable wires CuSi | 1.0 mm |
| weldable wires flux core wire from to | 0.8 1.2 mm |
| Wire feet unit | 4 Rollers |
| Speed from to | 1.5 24 m/min |
| Wire feed rolls/driven | 4 Rollers |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Gas hose 4 m
| 2-stroke/4-stroke switching | ✔ |
| Spot welding | Spot |
| Guest test function | ✔ |
| Adjustable choke | 0 – 10 |
| Operating display | LCD |
| Overload indicator | ✔ |
