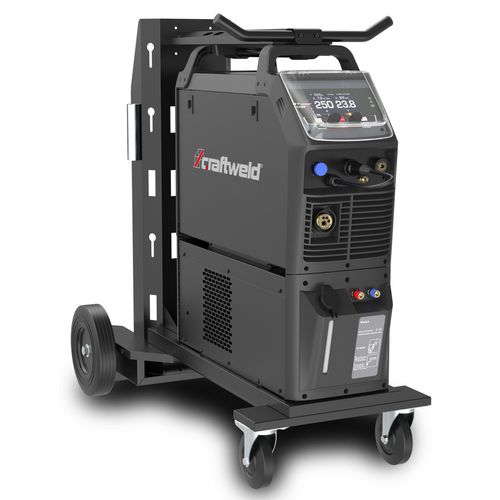

MIG/MAG Inverter welding device
CRAFT-MIG.PRO 403 W Synergic
Robust industrial series - made for heavy-duty use
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1361162
Are you interested in this product?
Put a request
Find Trader
Productdetails
- High duty cycle of 60% at maximum power ensures longer welding times without overheating, ideal for large projects
- State-of-the-art inverter technology in modular design ensures maximum reliability combined with maximum efficiency
- Synergy curves for steel, stainless steel and aluminum - 3 steps to the perfect result
- Adjustable choke enables precise adjustment of the arc characteristics
- LCD display for simple and precise setting of welding parameters
- Sophisticated cooling system with encapsulated air duct for efficient heat dissipation ensures stable welding performance even in the toughest applications
- Suitable for use on generators
- Note: Machine is supplied without accessories
| Cooling | |
|---|---|
| Cooling type | AF |
| Torch cooling | water |
| Dimensions and weights | |
|---|---|
| Length approx. | 1100 mm |
| Width/depth approx. | 530 mm |
| Height approx. | 850 mm |
| Weight approx. | 66.5 kg |
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 60 % |
| Current at 60% DC 40°C | 400 A |
| Current at 100% DC 40°C | 310 A |
| Electrical connections | |
|---|---|
| Input current | 25.9 A |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
| Input | |
|---|---|
| MIG/MAG | 16.5 kVA |
| Electrode | 17.9 kVA |
| TIG DC | 13.6 kVA |
| Efficiency | 87.7 % |
| Setting range | |
|---|---|
| MIG/MAG | 30 400 A |
| TIG DC | 10 400 A |
| Electrode | 10 400 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1; EN 60974-10 |
| EMC class | A |
| Marking | CE |
| Wire feed | |
|---|---|
| weldable wires steel from to | 0.8 1.2 mm |
| weldable wires stainless steel from to | 0.8 1.8 mm |
| weldable wires aluminium from to | 1.0 1.2 mm |
| weldable wires CuSi | 1.0 mm |
| weldable wires flux core wire from to | 0.8 1.2 mm |
| Wire feet unit | 4 Rollers |
| Speed | 24 m/min |
| Wire feed rolls/driven | 4 Rollers |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Gas hose 4 m
| Process MIG/MAG | ✔ |
| Process MMA | ✔ |
| 2-stroke/4-stroke switching | ✔ |
| Spot welding | Spot |
| Guest test function | ✔ |
| Adjustable choke | 0 – 10 |
| Operating display | LCD |
| Overload indicator | ✔ |
