| Circular saw unit | |
|---|---|
| Trimming length | 1600 mm |
| Cutting width with rip fence | 800 mm |
| Max. cross-cutting width left of saw blade | 1660 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height at 90° | 90 mm |
| Max. cutting height at 45° | 63 mm |
| Max. saw blade protrusion 90° | 100 mm |
| Max. saw blade protrusion 45° | 78 mm |
| Diameter of (main) saw blade | 315 mm |
| Explanation about diameter of (main) saw blade | with scorer |
| (Main) saw blade speed | 3500 min¯¹ |

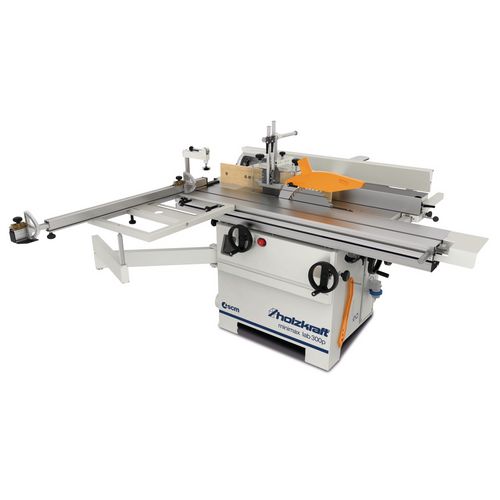

Universal multiple combination
minimax lab 300p F16 TERSA
Universal with aluminum sliding carriage. High performance in a small space with low investment costs.
9.850,00
EUR excl. Tax / pc(s).
11.721,50 EUR incl. 19% Tax / pc(s).
11.721,50 EUR incl. 19% Tax / pc(s).
Promotional price *
8.079,00 EUR excl. Tax / pc(s).9.614,01 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 5500314
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For sawing, milling, planing, thicknessing and optional long hole drilling
- Stable steel gray cast iron construction
- Format sliding table 1600 mm made of anodized aluminum for highest cutting precision
- Precise and convenient cuts even on large workpieces thanks to stable support on the 270 mm wide sliding carriage
- Robust, ribbed cast work tables
- Swiveling saw blade from 90° - 45°
- Trimming frame with telescopic aluminum crosscut fence with a flap stop for plates and large workpieces
- Planing aggregate as standard with TERSA quick change system with three planing knives
- Helical steel pick roller for constant workpiece feed during thickness planing
- Three cutting speeds, manually adjustable from 3,600 - 10,000 rpm
- Three independent industrial motors
- With lockable main switch, motor protection switch, emergency stop switch

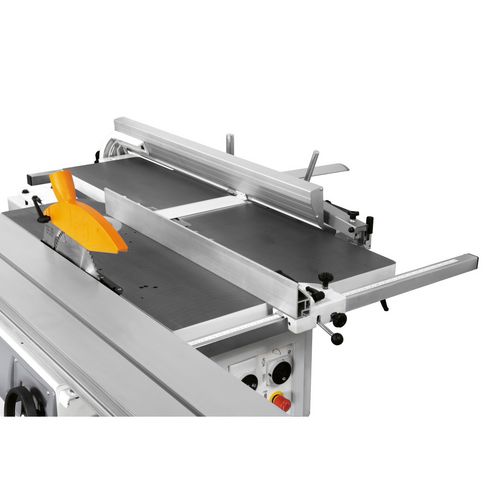

aluminum sliding table
- Equipped with a ball contact system proven millions of times
- Permanently smooth-running
- Dust and dirt-resistant due to minimal contact point between the ball and the trapezoidal rail.
- 10-year HOLZKRAFT warranty for wear of the guideways
| Dimensions and weights | |
|---|---|
| Weight approx. | 430 kg |
| Electrical Data | |
|---|---|
| Number of drives | 3 |
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Saw blade protection extraction port diameter | 60 mm |
| Number of extraction ports | 4 |
| Extraction port diameter | 120 mm |
| Feed | |
|---|---|
| Speed | 7 m/min |
| Installation information | |
|---|---|
| Space requirement length | 3859 mm |
| Space requirement width/depth | 2793 mm |
| Space requirement explanation | The dimensions take into account maximum travel distances or useful lengths. |
| Machine body length | 802 mm |
| Machine body width/length | 960 mm |
| Work area length | 1600 mm |
| Work area width/depth | 2300 mm |
| Explanation about work area | Please add the given dimensions with the required space to obtain the free space recommended for the machine. |
| Jointing | |
|---|---|
| Infeed table width | 300 mm |
| Infeed table length | 1300 mm |
| Angle of inclination saw/joint stop | 90/45 ° |
| Max. cutting depth | 3 mm |
| Milling cutter diameter max. | |
|---|---|
| not lowerable | 180 mm |
| lowerable | 120 mm |
| Pin milling | 275 mm |
| Milling spindle | |
|---|---|
| Angle | 0 ° |
| Mandrel diameter | 30 mm |
| Usable length | 100 mm |
| Speed(s) | 3600/7500/10000 min¯¹ |
| Planing knife shaft | |
|---|---|
| Type | TERSA |
| Diameter | 72 mm |
| Number of planing blades | 3 St |
| Sliding carriage and table | |
|---|---|
| Sliding table length | 1600 mm |
| Sliding table width | 270 mm |
| Sliding table height | 124 mm |
| Table length | 1020 mm |
| Table width | 325 mm |
| Table height | 900 mm |
| Thickness | |
|---|---|
| Table length | 450 mm |
| Table width | 300 mm |
| Working height min. | 3 mm |
| Working height max. | 220 mm |
| Max. cutting depth | 3 mm |
| VPE | 1 |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Combination dressing / rip fence
- Bogenfrässchutzhaube
- Tersa-knife shaft
- Anodized aluminum sliding carriage
- folding stops
- Eccentric clamping arm
| Scoring unit | optionally available |
| Sliding carriage | made of anodised aluminium |
| Trimming frame | with angle-adjustable telescopic crosscut fence with two professional folding fences |
| Eccentric clamp | ✔ |
| Strokes | Combination dressing/parallel fence |
| Curved milling protection hood | ✔ |
| Height adjustment and tilting of the saw unit | manual |
| Height adjustment and swivelling of the milling unit | manual |
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Accessories
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
