| Cutting ranges | |
|---|---|
| 0° round (full material) | 225 mm |
| 0° quadratic (full material) | 190 mm |
| 0° rectangle horizontal (full material) | 150 x 245 mm |
| +45° round (full material) | 145 mm |
| +45° quadratic (full material) | 150 mm |
| +45° rectangle horizontal (full material) | 190 x 150 mm |
| +60° round (full material) | 90 mm |
| +60° quadratic (full material) | 90 mm |
| +60° rectangle horizontal (full material) | 120 x 90 mm |

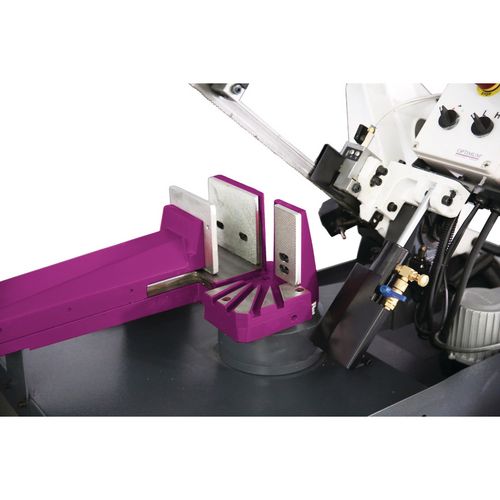

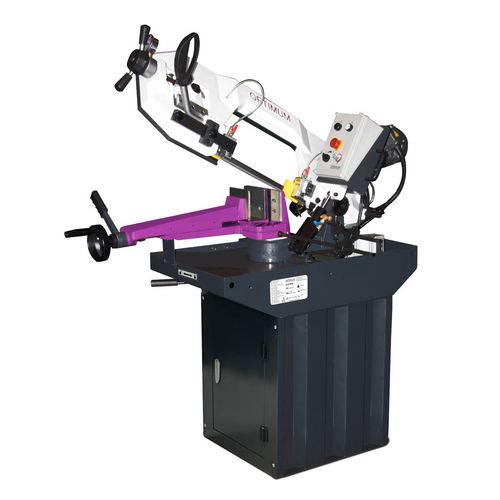

Metal band saw
OPTIsaw S 275PV
Metal band saw with swivel-mounted saw arm and infinitely variable
2.209,00
EUR excl. Tax / pc(s).
2.628,71
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3305280
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Quiet running
- Sturdy cast design
- High cutting accuracy due to vibration-free operation
- Infinitely adjustable lowering of the saw arm via hydraulic cylinder with throttle valve
- Microswitch for automatic limit stop
- Coolant device
- With high-quality bi-metal saw blade as standard
- Adjustable material stop for standard work
- Robust machine base
- Ball bearing saw blade guide
- Easy-to-read scale for angle adjustment
- Overload protection
- Infinitely adjustable saw blade speed 20 - 90 m/min
- Speed can be changed during operation
You receive the 3-year Stürmer warranty on this item when registering online
| Dimensions and weights | |
|---|---|
| Max. width/depth | 985 mm |
| Max. height | 1700 mm |
| Length approx. | 1400 mm |
| Width/depth approx. | 685 mm |
| Height approx. | 1235 mm |
| Weight approx. | 185 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| VPE | 1 |
| Sicherheits- und Warnhinweise | |
| Safety and warning notices |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Material stop
- Bi-metal band saw blade
- Machine base
- Coolant pump
