    Cleaning and marking device

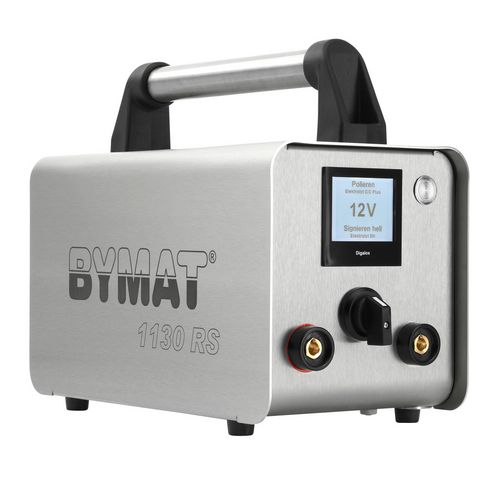

    BYMAT 1130 RS

    Easy and safe cleaning and polishing of TIG seams with the professional entry-level model. And additionally also signing bright and dark. Made of stainless steel.

    1.667,50 EUR excl. Tax / pc(s).
    1.984,33 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1231130RS

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Tools and accessories:

    • Tools are completely in stainless steel, therefore no corrosion
    • Tools have bayonet lock, allowing very quick change
    • All electrolytes are environmentally friendly and can be used in the food industry

    The BYMAT 1130 RS made of stainless steel is versatile and contains 4 different programs:

    • Clean with the high performance brush
    • Polishing with the high-performance brush
    • Sign dark
    • Sign brightly

    With high-performance brush made of carbon fibers

    • It is also possible to clean hard-to-reach areas and long seams
    • And all in excellent quality
    • Efficiently cleans TIG / TIG welds in seconds

    Proven transformer technology allows:

    • compact device design
    • interference-free operation
    • robust handling
    • simple and safe operation
    • Application in the workshop and on assembly

    Quality Made in Germany



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Device data
    Primary voltage230 V
    Output voltage alternating current10/12 V
    Output voltage direct current12 V
    Max. output current80 A
    Output800 W
    Dimensions and weights
    Length approx.345 mm
    Width/depth approx.180 mm
    Height approx.285 mm
    Weight approx.11.9 kg
    Electrical Data
    Mains frequency50 / 60 Hz
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • plastic containers
    • Wide neck container 500 ml incl. Closure
    • Premiumline earth cable red, 3m with bayonet lock and ground terminal
    • Premiumline ground cable black, 3 m with bayonet lock
    • Cleaning brush Ø 10 mm for Premiumline
    • Electrolyte C Plus, 1 liter
