Electrode inverter
BOOSTER.PRO 230 Set
Ultra-modern, fully digital electrode welding machine in extremely compact, lightweight design
1.844,00
EUR excl. Tax / pc(s).
2.194,36 EUR incl. 19% Tax / pc(s).
2.194,36 EUR incl. 19% Tax / pc(s).
Promotional price *
1.599,00 EUR excl. Tax / pc(s).1.902,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 1203231
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Fast, low-induction inverter
- Simple operation via digital SIRIUS operating system with graphic dynamic visualization
- Energy cost-saving IMS inverter technology with adaptation of the current consumption to the voltage curve <
- With its wide-range voltage range, it is suitable for worldwide use
- Fully insulated, protection class 2
- Suitable for generator use
- Works with 100 m mains cable
- Splash water protectedComplies with IP 23
- REHM Pre-Save-System protects the electronics in case of a fall from up to 90 centimeters
- R-Pilot control knob and display shock-resistant
- Equipped with reduced open-circuit voltage (VDR) as standard
- Boost function brings maximum power from single-phase mains
- Fuse hold function serves to monitor the mains for work on weak fuses
- Rehm guarantee
- Quality made in Germany
The manufacturer Rehm is currently undergoing insolvency proceedings. Some products may not be available. Please contact us if you are interested.
- Fast, low-induction inverter
- Simple operation via digital SIRIUS operating system with graphic dynamic visualization
- Energy cost-saving IMS inverter technology with adaptation of the current consumption to the voltage curve
- REHM Pre-Save-System protects the electronics in case of a fall from up to 90 centimeters
- Boost function brings maximum power from single-phase mains
| Dimensions and weights | |
|---|---|
| Length approx. | 480 mm |
| Width/depth approx. | 160 mm |
| Height approx. | 320 mm |
| Weight approx. | 6,7 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C electrode | 40 % |
| at Imax. 40°C TIG DC | 35 % |
| at Imax. 40°C fuse hold | 60 % |
| Current at 100% DC 40°C electrode | 140 A |
| Current at 100% DC 40°C TIG DC | 160 A |
| Current at 100% DC 40°C fuse hold | 140 A |
| Electrical connections | |
|---|---|
| Power consumption in idle mode | < 50 W |
| Electrical Data | |
|---|---|
| Supply voltage | 1 x 230 V |
| Mains frequency | 50 – 60 Hz |
| Input | |
|---|---|
| TIG DC | 5.8 kVA |
| Efficiency | > 80 % |
| Setting range | |
|---|---|
| Electrode | 20 – 180 A |
| TIG DC | 4 – 230 A |
| Fuse hold | 20 – 150 A |
| Standards and certifications | |
|---|---|
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

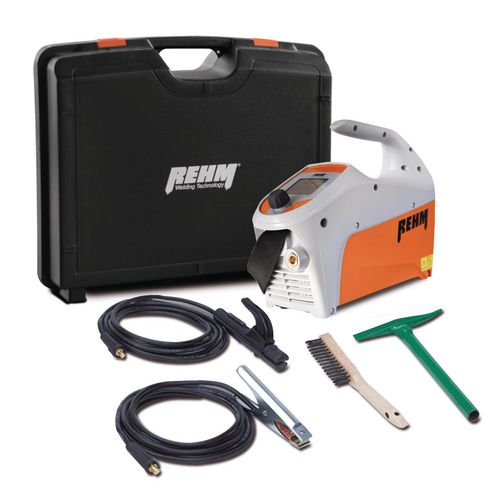

- transport case plastic
- ground cable 25 mm²
- electrode cable 25 mm²
- wire brush
- slag hammer
| Electrodes pulse welding | ✔ |
| TIG function | with contact ignition |
| BOOSTER function | ✔ |

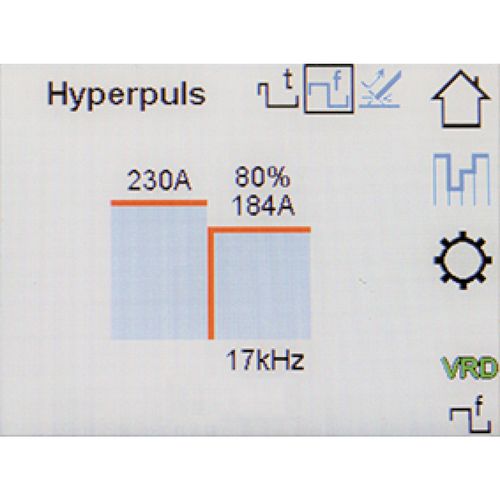

| REHM HYPER.PULS | ✔ |
| Anti-Stick | integrated |
| ArcForce | freely adjustable |
| HotStart | freely adjustable |
| SoftStart | ✔ |
| LiftArc ignition | ✔ |
| VRD operation | ✔ |
| Synergy curves | for basic and rutile electrodes |

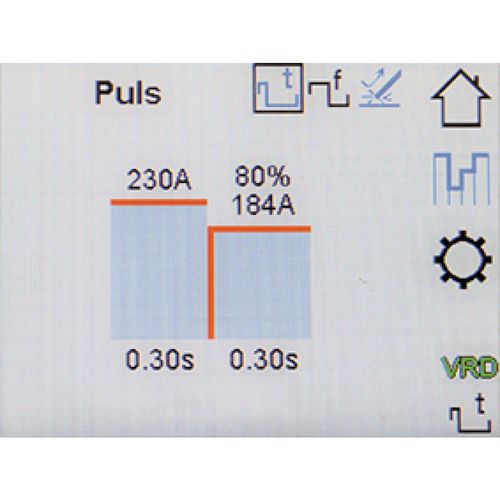

| Time pulses | ✔ |
