| Dimensions and weights | |
|---|---|
| Length approx. | 450 mm |
| Width/depth approx. | 150 mm |
| Height approx. | 280 mm |
| Weight approx. | 7.4 kg |

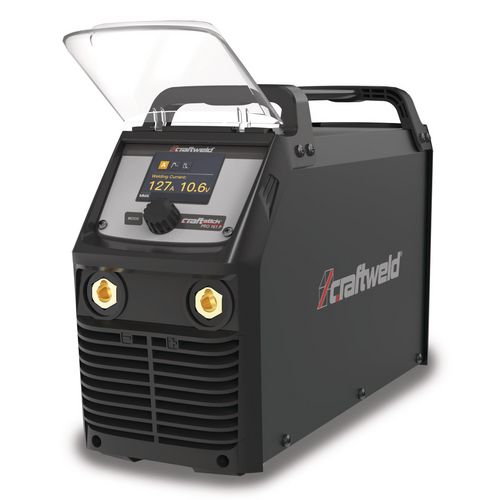

Electrode Inverter
CRAFT-STICK PRO 161P
Welding machine for highest demands
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1363162
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Constructed using modern inverter technology
- Universally applicable for welding all common electrode types
- Best suited for assembly work due to protection class IP 21S generally also for outdoor work
- Suitable for use on the generator, for example in workshops, schools, metal construction, on construction sites or for farmers
- Protected against moisture, salt spray and corrosion by sealed circuit board. Therefore also suitable for offshore use
- With power factor correction PFC for problem-free use even on cable drums
- Equipped with VRD for voltage reduction in no-load operation
- TIG DC function enables simple TIG welding with contact ignition

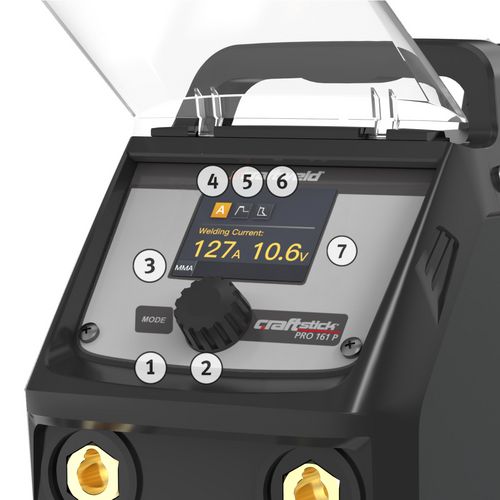

- Accurate setting and display of welding parameters via LC display
- Quiet running fan with good heat dissipation for high switch-on times
- Constant welding current achieves consistent deposition rate
- Hot Start: By automatically increasing the welding current for a short time, the arc ignites safely and is immediately stable
- Anti-stick: If the electrode accidentally sticks, the welding current is automatically reduced, thus preventing the electrode from annealing
- Arc-Force control: Due to the internal monitoring of welding current and welding voltage, short-circuits are quickly and safely resolved, thus stabilising the arc and allowing the electrode to be processed without any problems
| Duty cycle | |
|---|---|
| at Imax. 40°C electrode | 40 % |
| at Imax. 40°C TIG DC | 40 % |
| Current at 100% DC 40°C electrode | 105 A |
| Current at 100% DC 40°C TIG DC | 105 A |
| Electrical connections | |
|---|---|
| Input current electrode | 21.6 A |
| Input current TIG | 14.3 A |
| Total output | 5/3.5 kVA |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50/60 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1,6 - 4,0 mm |
| Power consumption | |
|---|---|
| Electrode | 5 kVA |
| TIG DC | 3.5 kVA |
| Setting range | |
|---|---|
| Electrode | 10 - 160 A |
| TIG DC | 10 - 160 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Welding cable 4 m, 16 mm² with electrode holder 300 A
- Ground cable 4 m, 16 mm² with ground clamp 300 A
| Anti-Stick | ✔ |
| ArcForce | ✔ |
| HotStart | ✔ |
| Power factor correction | ✔ |
| VRD operation | ✔ |
| LC display | 2,8 " |
