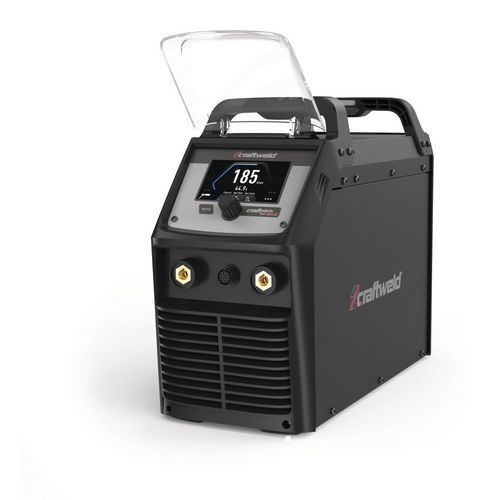

    • Productimage for CRAFT-STICK PRO 403 CEL
    • Productimage for CRAFT-STICK PRO 403 CEL
    • Productimage for CRAFT-STICK PRO 403 CEL
    • Productimage for CRAFT-STICK PRO 403 CEL
    Brandimage to Product CRAFT-STICK PRO 403 CEL

    Electrode Inverter

    CRAFT-STICK PRO 403 CEL

    Welding machine for highest demands

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 1363403

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Suitable for welding with cellulose electrodes
    • Universally applicable for welding all common electrode types
    • Best suited for assembly work due to protection class IP 21S generally also for outdoor work
    • Suitable for use on generators, for example in workshops, schools, metal construction, on construction sites or for farmers
    • Protected against moisture, salt spray and corrosion due to sealed circuit board. Therefore also suitable for offshore use
    • Equipped with VRD for voltage reduction in no-load operation
    • TIG DC function enables simple TIG welding with contact ignition

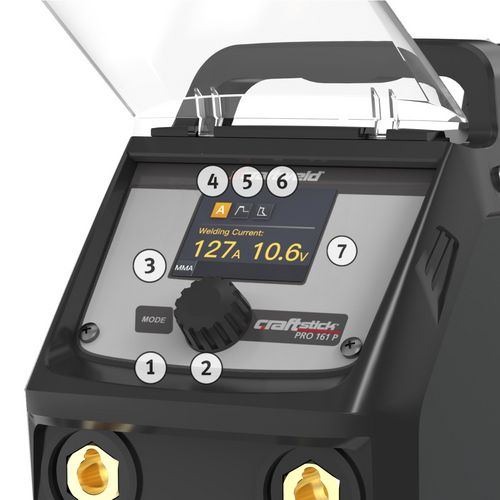

    • Accurate setting and display of welding parameters via LC display
    • Quiet running fan with good heat dissipation for high switch-on times
    • Constant welding current achieves consistent deposition rate
    • Hot Start: By automatically increasing the welding current for a short time, the arc ignites safely and is immediately stable
    • Anti-stick: If the electrode accidentally sticks, the welding current is automatically reduced, thus preventing the electrode from annealing
    • Arc-Force control: Due to the internal monitoring of welding current and welding voltage, short-circuits are quickly and safely resolved, thus stabilising the arc and allowing the electrode to be processed without any problems



    Dimensions and weights
    Length approx.532 mm
    Width/depth approx.216 mm
    Height approx.405 mm
    Weight approx.19.9 kg
    Duty cycle
    at Imax. 40°C electrode60 %
    at Imax. 40°C TIG DC60 %
    Current at 100% DC 40°C electrode310 A
    Current at 100% DC 40°C TIG DC310 A
    Electrical connections
    Input current electrode24,5 A
    Input current TIG18.1 A
    Total output22.4/17.3 kVA
    Electrical Data
    Supply voltage400 V
    Mains frequency50/60 Hz
    Electrode
    Weldable electrodes1,6 - 5,0 mm
    Power consumption
    Electrode16.4 kVA
    TIG DC12.4 kVA
    Setting range
    Electrode10 – 400 A
    TIG DC10 – 400 A
    Standards and certifications
    StandardEN 60974-1:2012, EN 60974-10:2014
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    MarkingCE
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Welding cable 4 m, 50 mm² with electrode holder 500 A
    • Ground cable 4 m, 50 mm² with ground clamp 500 A



    TIG function✔
    Anti-Stick✔
    ArcForce✔
    HotStart✔
    VRD operation✔
    LC display4 "
