    Hand held laser welding device

    MA1-45

    With external wire feed unit

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 1870045

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Basic Features


    Method

    Laser welding

    Description

    • Innovative welding process with high-precision and high-performance laser beam
    • Great savings potential due to three to four times faster processing and reduction of the defect rate
    • Extremely fine and clean weld seams are possible at the same time at significantly higher welding speeds than with conventional welding processes

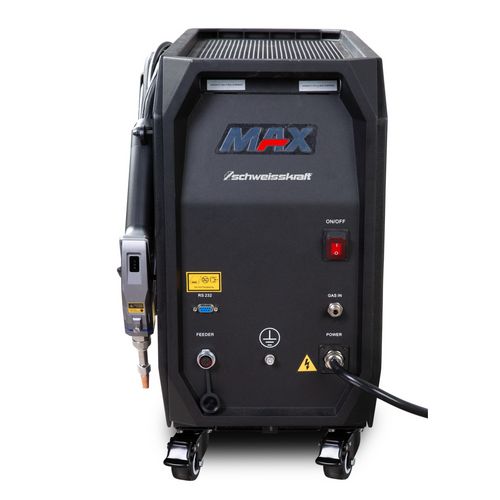

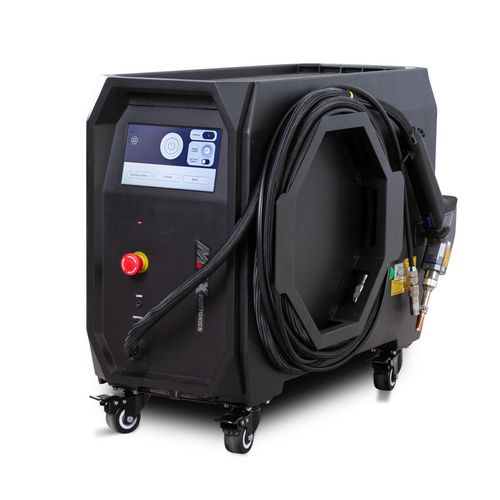

    • Compact laser welding system with large LCD touch display and trolley
    • Low heat input into the workpiece
    • With wobble function with a maximum deflection of 0 - 4 mm
    • Easy operation with laser welding gun and automatic wire feed: High quality welds, even without many years of welding experience
    • Program memory with 32 memory locations
    • For wire thicknesses from 0.8 - 1.6 mm
    • Wire feed unit included
    • Cleaning of weld seams possible
    • Problem-free processing of steel, stainless steel, aluminum, brass, copper
    • Advantages of laser welding compared to conventional welding methods: less material distortion, cleaner welding result, more cost-efficient, wobble technology for wide weld seams



    Dimensions and weights
    Weight power source38 kg
    Length power source667 mm
    Width/Depth power source276 mm
    Height power source542 mm
    Duty cycle
    Duty cycle at 90% output power50 %
    Electrical connections
    Input Power4.5 kW
    Output Power1.2 kW
    Electrical Data
    Supply voltage230 V
    Mains frequency50 Hz
    Laser
    Wobble0 – 4 mm
    Emission wavelength1080 nm
    Spectrum width3 nm
    Red guide laser power> 400 µW
    Weldable material thickness
    weldable material thickness steel4.5 mm
    weldable material thickness stainless steel4.5 mm
    weldable material thickness aluminum4 mm
    weldable material thickness CuSi3.5 mm
    weldable material thickness copper1.5 mm
    Wire feed
    Wire feet unit4 Rollers
    VPE1
    Unit: pc(s).
    Packaging unit: 1

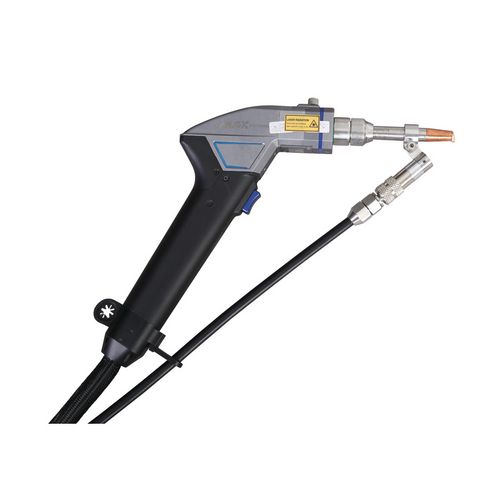

    • Laser gun with 5 m fiber cable

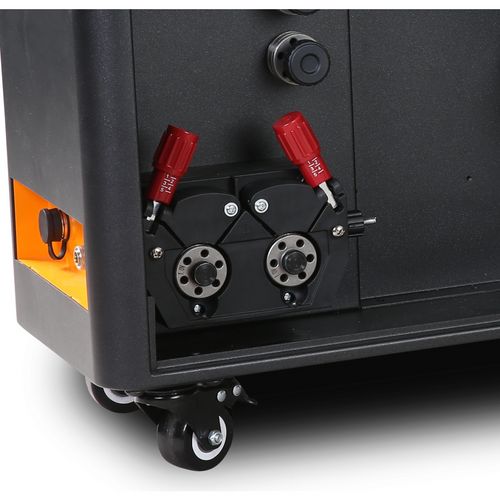

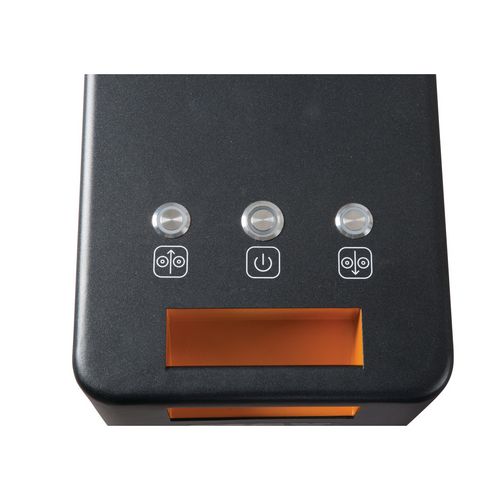

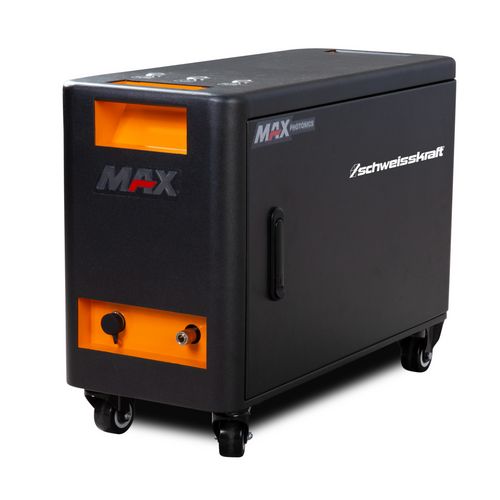

    • Wire feed unit
    • Five spare protection glasses for laser welding gun
    • Four wire feed nozzle for laser welding gun (1x each 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm)
    • Five nozzles for laser welding gun (1x each nozzle 1, nozzle 3, nozzle A, nozzle B and flat nozzle)
