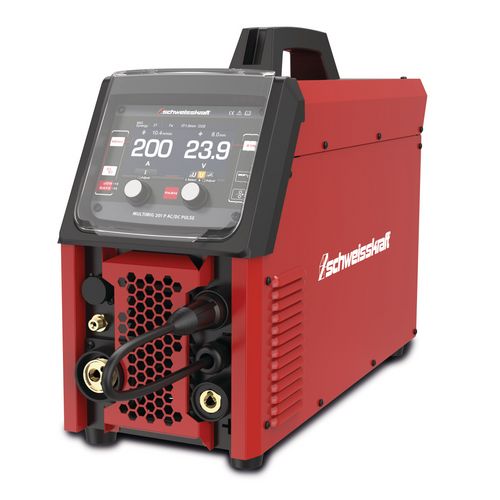

    Productimage for MULTIMIG 201 P AC/DC Pulse
    Brandimage to Product MULTIMIG 201 P AC/DC Pulse

    MIG/MAG inverter welding machine

    MULTIMIG 201 P AC/DC Pulse

    4 in 1 system - MMA, MIG/MAG, TIG AC/DC, TIG DC - Ideal machine for every assembly vehicle

    1.749,00 EUR excl. Tax / pc(s).
    2.081,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 1071020

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal assembly welding machine - combines all processes in one device: MMA (AC & DC), MIG/MAG, TIG (AC/DC / DC)
    • MIG / MAG with synergy characteristics - 3 steps to the finished welding result
    • Combines all the functions of our CRAFT-TIG 201 AC/DC P Pulse LCD incl. spot function and pulse
    • Extremely simple operation via high-resolution color display with graphic illustration of the welding curve and setting options
    • PFC control ensures even current consumption and maximum efficiency



    • Pulse function ideal for thin sheets and work requiring high precision
    • Inverter technology with stable welding current enables work with different material thicknesses
    • Automatic voltage adjustment for stable operation
    • Suitable for use on the generator



    Abmessungen und Gewichte
    Länge ca.580 mm
    Breite/Tiefe ca.230 mm
    Höhe ca.420 mm
    Gewicht ca.20,7 kg
    Drahtvorschub
    schweißbare Drähte Stahl0,6/0,8/0,9/1,0 mm
    schweißbare Drähte Edelstahl0,8/0,9/1,0 mm
    schweißbare Drähte Aluminium0,8/0,9/1,0 mm
    schweißbare Drähte CuSi0,8/0,9/1,0 mm
    schweißbare Drähte Fülldraht0,8/0,9/1,0 mm
    Drahtvorschubeinheit1 Rolle
    Geschwindigkeit von bis1,5 16,5 m/min
    Einschaltdauer
    Einschaltdauer bei max. Strom 40°C30 %
    Strom bei ED 60% 40°C145 A
    Strom bei ED 100% 40 °C110 A
    Einstellbereich
    MIG/MAG 30 200 A
    WIG DC10 200 A
    Elektrode10 200 A
    Elektrische Daten
    Anschlussspannung230 V
    Netzfrequenz50/60 Hz
    Elektrischer Anschluss
    StromaufnahmeMMA AC/DC: 28/30, WIG AC/DC: 19,5/20,5, MIG: 26,3 kVA
    Kühlung
    KühlartAF
    BrennerkühlungGas
    Leistungsaufnahme
    MIG/MAG6,04 kVA
    Elektrode AC6,43 kVA
    WIG DC4,69 kVA
    Elektrode DC6,85 kVA
    Wirkungsgrad82,45 %
    Normen und Zulassungen
    EMV-KlasseA
    KennzeichnungCE
    Produktinformationen EU 2023/2854
    Art der generierten DatenNutzungsdaten
    Format der generierten DatenGängige, maschinenlesbare Formate wie z.B. JSON
    DatenmengeBis zu 5 MB
    Datengenerierung kontinuierlich in EchtzeitJa
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • TIG torch SR 26 ED 4 m
    • Torch SMB 25 4 m
    • Earth cable 25 mm² 4 m
    • Welding cable 25 mm² 4 m
    • Pressure reducer
    • Gas hose 4 m



    Verfahren MIG/MAG✔
    Verfahren MMA✔
    2-Takt/4-Takt-Umschaltung2T/4T
    PunktschweißenSingle Spot
    IntervallschweißenMulti Spot
    Einstellbare Drossel0 – 10
    BetriebsanzeigeLCD
