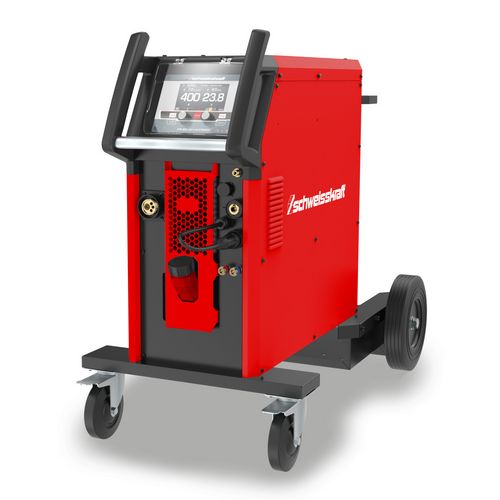

SYN-MIG 353-4 W Pulse

Robust industrial device - made for heavy-duty use

2.999,00 EUR excl. Tax / pc(s).
3.568,81 EUR incl. 19% Tax / pc(s).

Promotional price *

2.899,00 EUR excl. Tax / pc(s).
3.449,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.

Sicherheits- und Warnhinweise

Art.-No. 1072353

Are you interested in this product?

Put a request

Find Trader

Productdetails

Innovative pulse technology enables low-spatter weld seams - up to 80% less rework and higher deposition rate at the same time
Double-pulse function enables TIG-like weld seams at MAG speed
High duty cycle of 60% at maximum power ensures longer welding times without overheating, ideal for large projects
State-of-the-art inverter technology in modular design ensures maximum reliability combined with maximum efficiency
Synergy curves for steel, stainless steel and aluminum - 3 steps to the perfect result
Adjustable choke enables precise adjustment of the arc characteristics
LCD display for simple and precise setting of welding parameters
Sophisticated cooling system with encapsulated air duct for efficient heat dissipation ensures stable welding performance even in the toughest applications
Suitable for use on the generator
Integrated water cooling for optimum temperature control
Note: Machine is supplied without accessories

Innovative pulse technology enables low-spatter weld seams - up to 80% less rework and higher deposition rate at the same time
Double-pulse function enables TIG-like weld seams at MAG speed
High duty cycle of 60% at maximum power ensures longer welding times without overheating, ideal for large projects
Synergy curves for steel, stainless steel and aluminum - 3 steps to the perfect result
Adjustable choke enables precise adjustment of the arc characteristics
Integrated water cooling for optimum temperature control

Data sheets
Sicherheits- und Warnhinweise

Dimensions and weights
Length approx.	1100 mm
Width/depth approx.	530 mm
Height approx.	850 mm
Weight approx.	66,5 kg

Duty cycle
Duty cycle at Imax. 40°C	60 %
Current at 60% DC 40°C	350 A
Current at 100% DC 40°C	270 A

Electrical connections
Input current	26.5 A

Electrical Data
Supply voltage	400 V
Mains frequency	50/60 Hz

Power consumption
MIG/MAG	12.4 kVA
Electrode	13.4 kVA
TIG DC	9.8 kVA
Efficiency	89,02 %

Setting range
MIG/MAG	10 – 350 A
TIG DC	10 – 350 A
Electrode	20 – 350 A
MIG soldering	10 – 350 A

Standards and certifications
EMC class	A
Marking	CE

Wire feed
weldable wires steel from to	0.8 – 1.6 mm
weldable wires stainless steel from to	0.8 – 1.6 mm
weldable wires aluminium from to	1,0 - 1,6 mm
weldable wires CuSi from to	1.0 mm
weldable wires flux core wire from to	0.9 – 1.6 mm
Wire feet unit	2 rolls
Speed from to	1.5 – 24 m/min

VPE

Unit: pc(s).
Packaging unit: 1

MIG torch MB 401 4 m
3 m earth cable 35 mm² with earth clamp 300 A
Pressure reducer
4 m gas hose

Process MIG/MAG	✔
Process MMA	✔
2-stroke/4-stroke switching	2T/4T/4T+
Spot welding	Spot
Adjustable choke	0 - 10 for syn，-10 - +10 for pulse
Operating display	LCD
Overload indicator	✔
