Cooling | |
---|---|
Cooling type | AF |
Torch cooling | Gas |

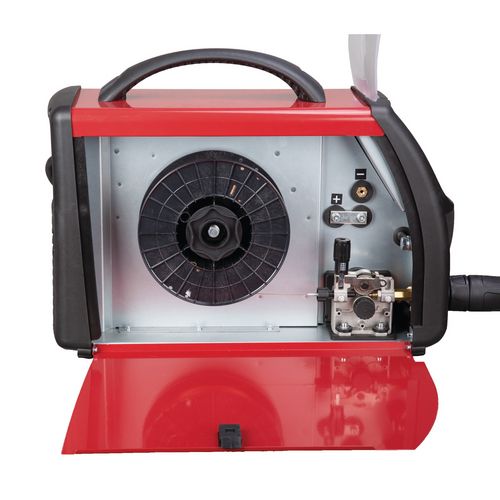

Multifunction inverter
The portable all-rounder for MIG/MAG, TIG Lift Arc and electrode welding - with 230V optimal for every construction site.
729,00
EUR excl. Tax / pc(s).
867,51
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1071181
Cooling | |
---|---|
Cooling type | AF |
Torch cooling | Gas |
Dimensions and weights | |
---|---|
Length approx. | 525 mm |
Width/depth approx. | 220 mm |
Height approx. | 410 mm |
Weight approx. | 14.5 kg |
Duty cycle | |
---|---|
at Imax. 40°C MIG/MAG | 20 % |
at Imax. 40°C TIG DC | 20 % |
at Imax. 40°C electrode | 20 % |
Current at 100% DC 40°C MIG/MAG | 80 A |
Current at 100% DC 40°C TIG DC | 80 A |
Current at 100% DC 40°C electrode | 70 A |
Duty cycle at Imax. 40°C | 20 % |
Current at 60% DC 40°C | 105 A |
Current at 100% DC 40°C | 80 A |
Electrical Data | |
---|---|
Supply voltage | 230 V |
Mains frequency | 50/60 Hz |
Power consumption | |
---|---|
Power consumption MIG/MAG | 8.41 kVA |
TG DC | 6.67 kVA |
Electrode | 8,4 kVA |
Setting range | |
---|---|
Setting range MIG/MAG | 40 – 180 A |
Electrode | 10 - 160 A |
TIG DC | 10 – 180 A |
MIG/MAG | 40 180 A |
Standards and certifications | |
---|---|
Standard | EN 60 974-1; -10 |
EMC class | A |
Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
Marking | CE |
Wire feed | |
---|---|
Wire feed unit | 2 Rollers |
Wire feet unit | 1 Roll |
Speed | 2.0 13.5 m/min |
VPE | 1 |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
