| Device data | |
|---|---|
| Pulse rate | 0.5 - 999 Hz |
| Ignition | High frequency |
| Torch cooling | Gas / Water |

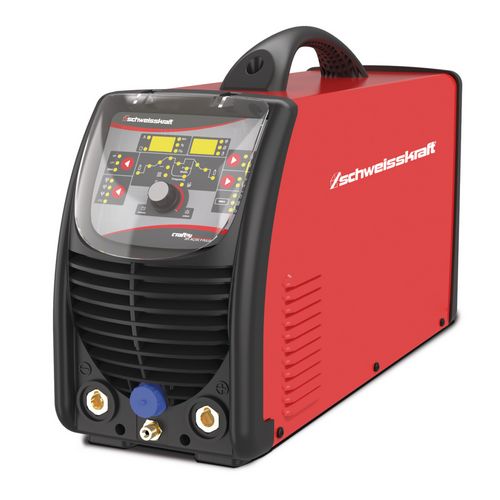

Portable TIG AC/DC inverter
CRAFT-TIG 201 AC/DC P PULSE
For workshop and mobile use
1.419,00
EUR excl. Tax / pc(s).
1.688,61
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1074202
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Sheet thicknesses
Description
- Built with modern inverter technology
- Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
- Universally applicable for welding of all common electrode types
- TIG pulsing enables welding with reduced heat input
- HF high frequency ignition ignites during TIG welding without touching the workpiece
- Quiet running fans dissipate heat well from the equipment for long duty cycles
- Time controlled fan with stand-by mode
- Adjustable balance

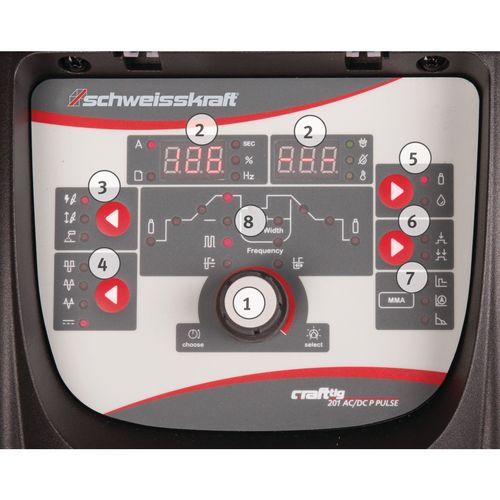

- Precise setting of welding parameters via digital display
- Device equipped with PFC (power factor correction), enables best use even on cable drums
- Optional with water cooling
- Multivoltage from 110 to 230 volts
- Nine programs can be stored

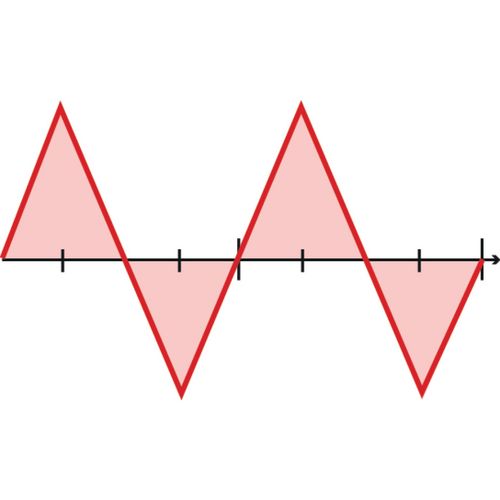

- AC triangle wave welding output: reduced heat input for the same current setting, especially useful for welding thin metal

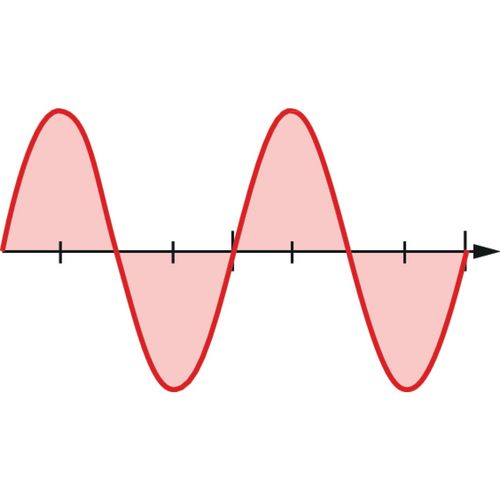

- AC Sine Wave Welding Output: Traditional AC TIG welding waveform, quieter, "softer" arc characteristics.

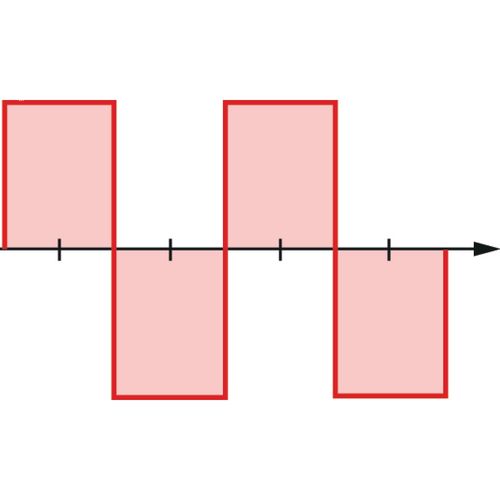

- AC square wave: focused arc for maximum penetration, fast travel speed with best directional control
- MMA mode with hot-start and arc-force control
- Adjustable weldinge curve
| Dimensions and weights | |
|---|---|
| Length approx. | 580 mm |
| Width/depth approx. | 190 mm |
| Height approx. | 350 mm |
| Weight approx. | 14.5 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 60 % |
| at Imax. 40°C electrode | 35 % |
| Current at 100% DC 40°C TIG DC | 155 A |
| Current at 100% DC 40°C electrode | 120 A |
| Electrical Data | |
|---|---|
| Current consumption TIG AC | 19.2 A |
| Input current TIG DC | 20.5 A |
| Input current electrode AC | 27.5 A |
| Current consumption electrode DC | 30 A |
| Supply voltage | 90 – 275 V |
| Mains frequency | 50/60 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1.6 – 4.0 mm |
| Power consumption | |
|---|---|
| TIG DC | 4.7 kVA |
| Electrode | 6.9 kVA |
| Setting range | |
|---|---|
| TIG DC | 3 – 200 A |
| Electrode | 10 – 200 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012/EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Gas hose 4 m incl. quick connector
- Torch TIG SR26 4 m with Up/Down function (gas-cooled)
- Pressure reducer
- 3m ground cable 25 mm² with ground clamp
| Power factor correction | ✔ |
| Process TIG pulsing | ✔ |
