| Device data | |
|---|---|
| Pulse rate | 0.5 - 999 Hz |
| Ignition | high frequency |
| Torch cooling | gas |

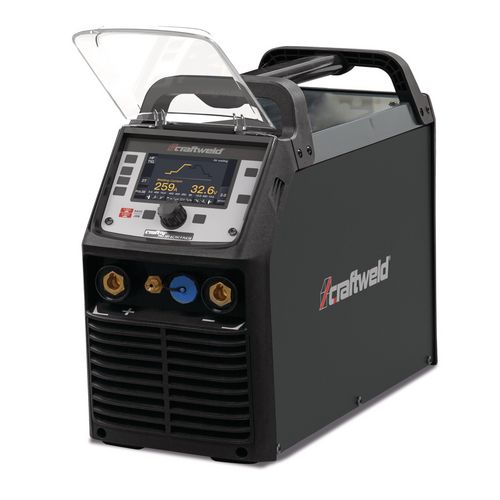

TIG inverter
CRAFT-TIG PRO 201 AC/DC P Pulse
Welding equipment for the highest demands, always the right wave for your task
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1364202
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Built in modern inverter technology
- Universally applicable for welding all common types of electrodes
- Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
- Suitable for use on the generator, for example in workshops, schools, metal construction, on building sites or for farmers
- Quiet running fan with good heat dissipation for high switch-on times
- Power factor correction PFC for trouble-free use also on cable drum

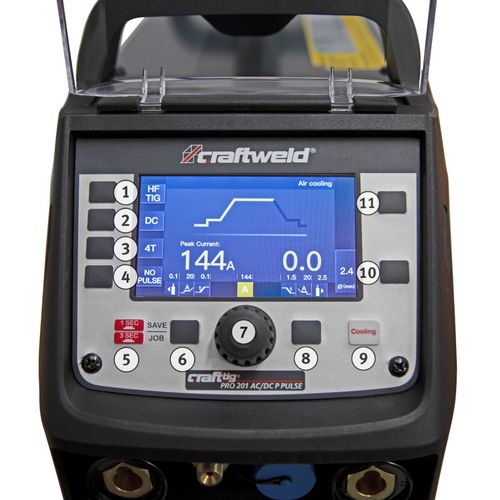

- Precise setting and display of welding parameters via large LC display
- TIG pulsing with 999 Hz enables welding with reduced heat input
- HF high frequency ignition ignites during TIG welding without touching the workpiece
- Equipped with tacking function 0.2 seconds
- Interval welding function with adjustable welding and pause time
- Multivoltage from 110 to 230 volts
- Nine programs can be stored

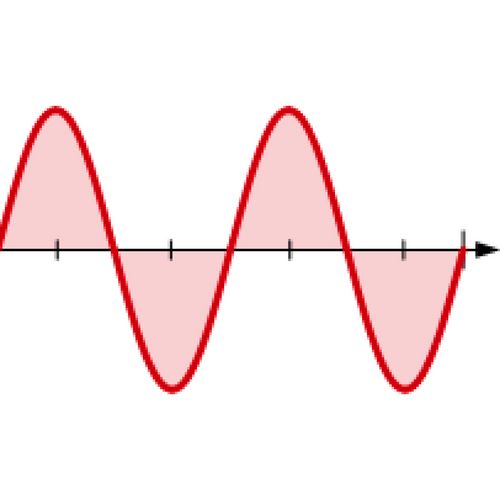

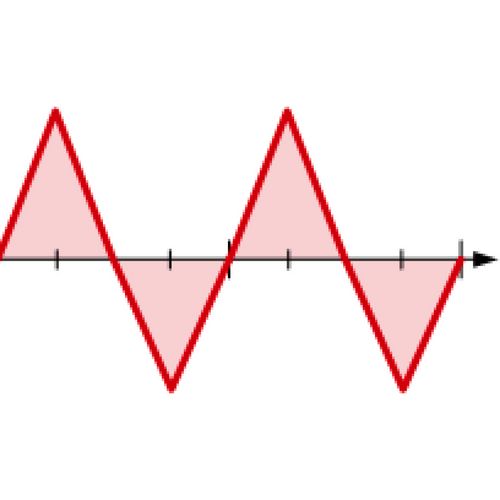

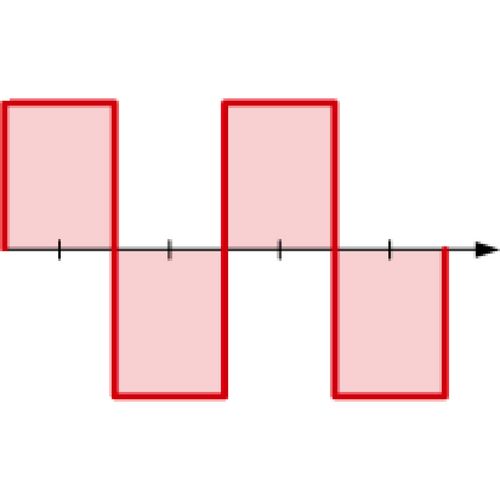

- Adjustable waveforms, balance and frequency in AC mode
- Nine programs storable
- Tungsten electrode diameter adjustable
| Dimensions and weights | |
|---|---|
| Length approx. | 545.5 mm |
| Width/depth approx. | 190 mm |
| Height approx. | 360 mm |
| Weight approx. | 15.4 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 60 % |
| at Imax. 40°C electrode | 35 % |
| Current at 100% DC 40°C TIG DC | 110 A |
| Current at 100% DC 40°C electrode | 110 A |
| Electrical Data | |
|---|---|
| Total output | 7.1/4.9 kVA |
| Current consumption TIG AC | 20.9 A |
| Input current TIG DC | 21.4 A |
| Input current electrode AC | 28.7 A |
| Current consumption electrode DC | 30.9 A |
| Supply voltage | 110/230 V |
| Mains frequency | 50/60 Hz |
| Power consumption | |
|---|---|
| TIG DC | 4.8 kVA |
| Electrode | 7 kVA |
| Setting range | |
|---|---|
| TIG DC | 10 – 200 A |
| Electrode | 10 – 200 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Welding cable 16 mm² 4 m with 300 A clamp
- Ground cable 16 mm² 4 m with 300 A clamp
- TIG torch SR26, 4 m
- Gas hose 12x6 mm 4 m
- Pressure reducer large
| Power factor correction | ✔ |
| Process MMA | ✔ |
| Process TIG pulsing | ✔ |
| LC display | 4 " |
| Single Spot | ✔ |
| Multi Spot | ✔ |
| Water cooling connection | ✔ |
