| Device data | |
|---|---|
| Pulse rate | 0.5 – 999 Hz |
| Ignition | high frequency |
| Torch cooling | gas / water |
TIG inverter
CRAFT-TIG PRO 323 AC/DC PULSE
built in modern inverter technology
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1364324
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful TIG AC/DC welding machine, designed for heavy-duty use
- With 60% duty cycle at 320A, also suitable for continuous use at the power limit
- Intelligent ignition management with synergy characteristics ensures consistently good ignition behavior even in AC mode

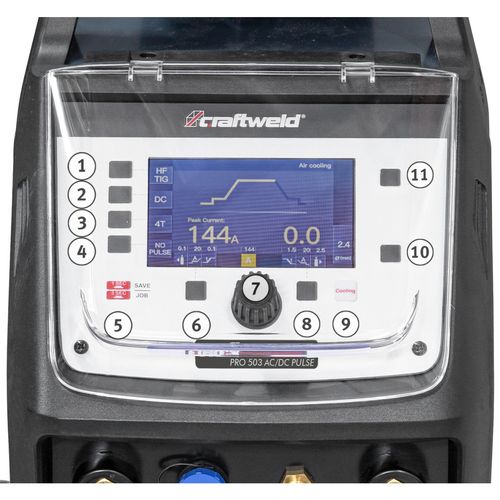

- Extremely simple operation via high-resolution color display with graphic illustration of the welding curve and setting options
- Arc selection, adjustable balance and frequency in AC mode - welding characteristics can be adapted to the respective requirements
- Spot function
- Program memory with 10 memory locations
- Supports wireless foot pedal and remote control
| Dimensions and weights | |
|---|---|
| Length approx. | 570 mm |
| Width/depth approx. | 200 mm |
| Height approx. | 355 mm |
| Weight approx. | 18.5 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 60 % |
| at Imax. 40°C electrode | 60 % |
| Current at 100% DC 40°C TIG DC | 250 A |
| Current at 100% DC 40°C electrode | 250 A |
| Electrical connections | |
|---|---|
| Power consumption in idle mode | < 50 W |
| Electrical Data | |
|---|---|
| Total output | 10.5 kVA |
| Input current TIG AC | 17.8 A |
| Input current TIG DC | 18.9 A |
| Input current electrode AC | 23 A |
| Input current electrode DC | 24.3 A |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1.6 5.0 mm |
| Input | |
|---|---|
| TIG AC | 12.4 kVA |
| TIG DC | 12.8 kVA |
| Electrode AC | 15.9 kVA |
| Electrode DC | 16.8 kVA |
| Efficiency | 86.03 % |
| Setting range | |
|---|---|
| TIG DC | 5 320 A |
| Electrode | 10 – 320 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Earth cable 35 mm² 4 m with 300 A electrode holder
- TIG torch SR18, 4 m
- Gas hose 4 m
- Pressure reducer
- trolley
- Cooling unit
| Process MMA | ✔ |
| Process TIG pulsing | ✔ |
| LC display | ✔ |
| Water cooling device | ✔ |

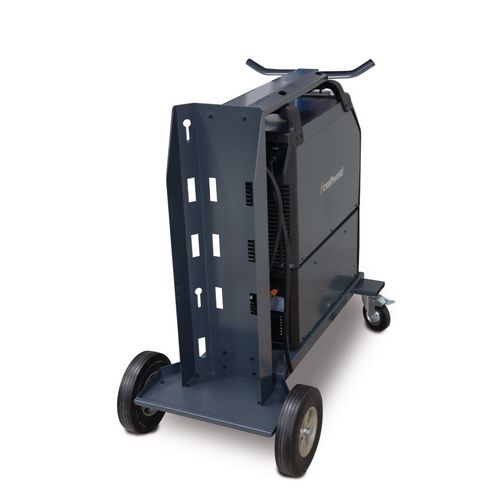

| Trolley | with two swivel castors at the front, two fixed castors at the rear and gas bottle holder |
| Single Spot | ✔ |

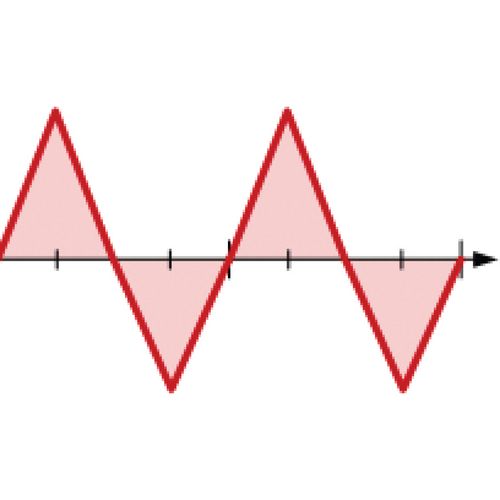

| AC delta wave | ✔ |

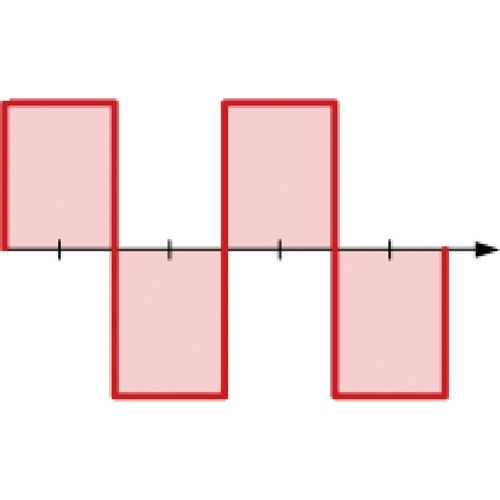

| AC square wave | ✔ |
| AC frequency | ✔ |
| Programs storable | ✔ |
