Brandimage to Product TIGER 230AC / DC ULTRA digital

TIG Inverter

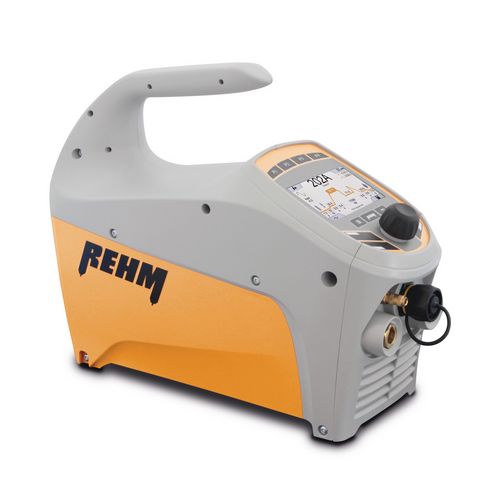

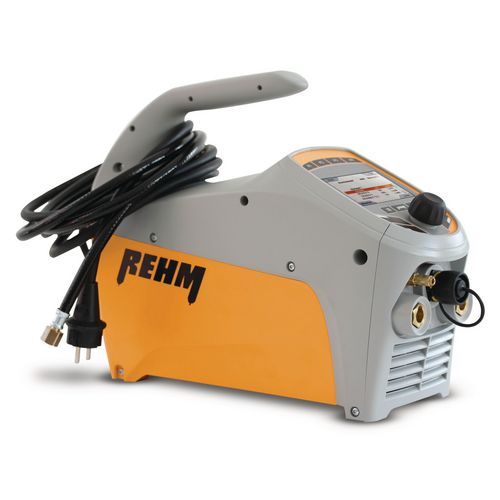

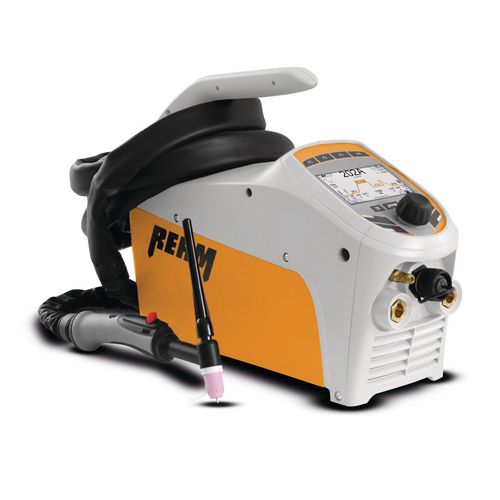

TIGER 230AC / DC ULTRA digital

Tacking and welding in perfection, for trade and industry. Revolutionary simple and safe operating concept!

4.225,90 EUR excl. Tax / pc(s).
5.028,82 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 1403566

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    Basic Features

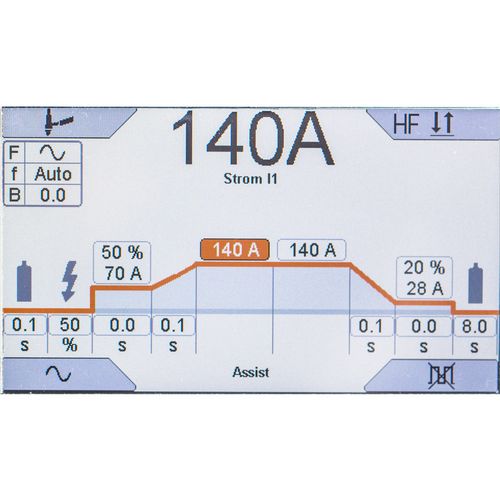

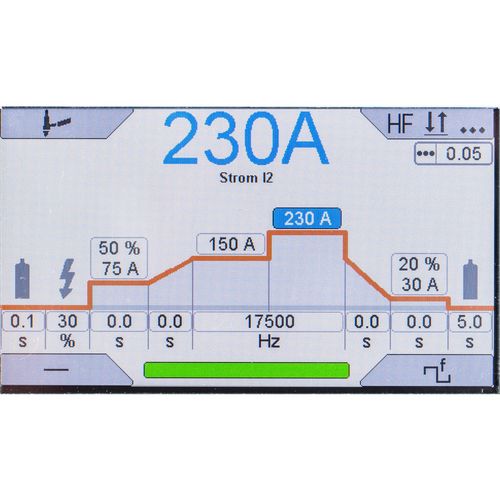

    • New, patented operation with full colour display supports the operator with self-explanatory graphics and the display of all set welding parameters
    • Working with PFC therefore use on all types of generators is possible as well as worldwide use due to multi-voltage

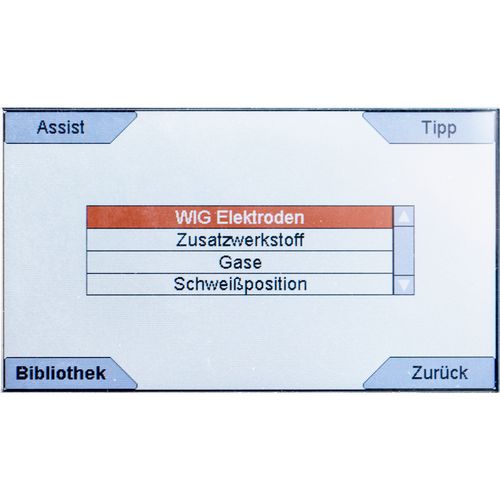

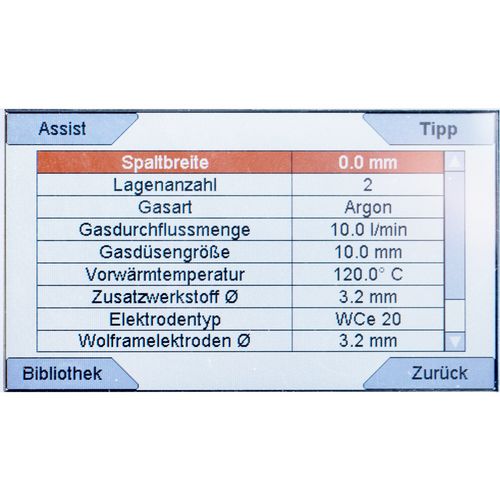

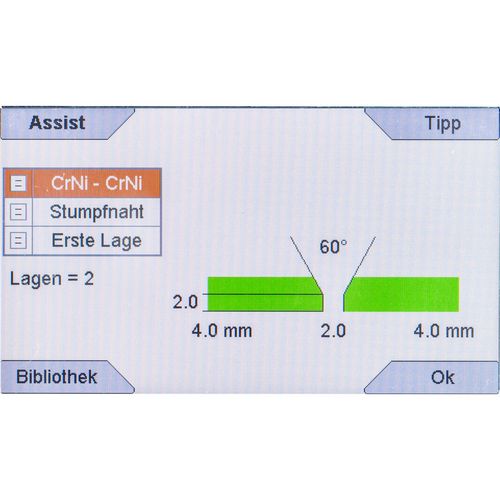

    • software with digital assistant and welding material library

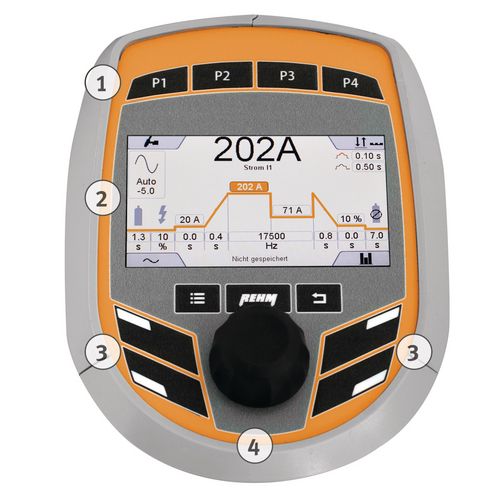

    • Four Quick-Choice buttons for easy and quick saving of welding tasks
    • State-of-the-art primary inverter technology

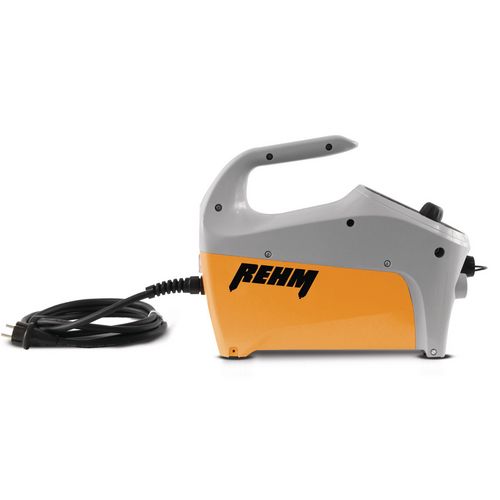

    • At 7.1 to 7.9 kg, the TIGER digital is the lightest REHM TIG machine on the market

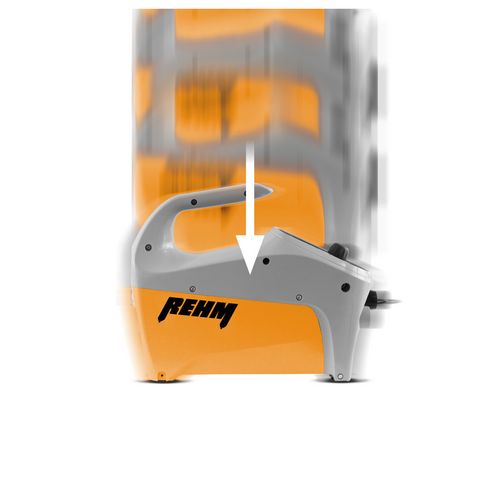

    • Very stable and functional housing withstands falls from a height of up to 90 cm without affecting the power electronics
    • Dust-protected electronics
    • Separate air duct prevents polluted air and particles from reaching the electronics and the device is optimally cooled

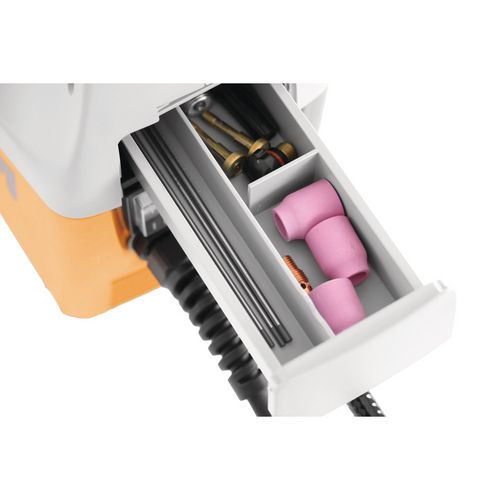

    • Integrated compartment for storing accessories and consumables
    • Up to 230 amperes from 230 volts
    • Perfect seam appearance and thus significantly reduced reworking
    • With quick connection for
      water cooling unit prepared

    ULTRA models with the additional highlights:

    • hyperpulse with 17,500 Hz
    • DUAL.WAVE technology
    • point function from 0.01 seconds
    • ignition energy adjustable
    • end current adjustable
    • start current adjustable
    • AC- frequency adjustable
    • AC- waveform triangle and rectangle selectable
    • Display of welding voltage
    • 99 programs storable


    • High resolution display
    • High performance primary inverter technology
    • PFC
    • Dust-protected electronics
    • Optimum cooling
    • Very light
    • Up to 230 amperes from 230 volts


    Device data
    Torch coolinggas / water
    Dimensions and weights
    Length approx.480 mm
    Width/depth approx.160 mm
    Height approx.320 mm
    Weight approx.7.9 kg
    Duty cycle
    at Imax. 40°C TIG DC35 %
    Electrical Data
    Supply voltage230 V
    Mains frequency50/60 Hz
    Power consumption
    TIG DC5.8 kVA
    Setting range
    TIG DC4 – 230 A
    Standards and certifications
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    Unit: pc(s).
    Packaging unit: 1

    • Cooling device connection
