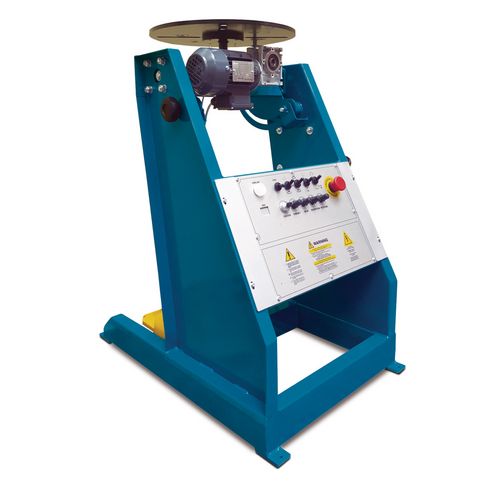

Rotary Welding Table
Automa 2000 SPS POWER 120 I PLC
Rotary table positioning device with manual tilting
6.680,00
EUR excl. Tax / pc(s).
7.949,20
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1500006
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Geeignet für Elektroden-, MIG-, MIG-MAG- und Plasmaschweißen und Plasmaschneiden
- Übersichtliche Bedienelemente
- Stufenlos verstellbare Drehzahl
- Die Steuerelektronik ist von einem robusten und geschlossenen Gehäuse geschützt
- Mit Fußtaster für Start/Stop
| Dimensions and weights | |
|---|---|
| Rotary disc diameter | 400 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Technical data | |
|---|---|
| Load-bearing capacity horizontal table position | 120 kg |
| Load-bearing capacity vertical table position | 60 kg |
| Speed | 0,6 – 6,0 min¯¹ |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
