    Brandimage to Product EG 5

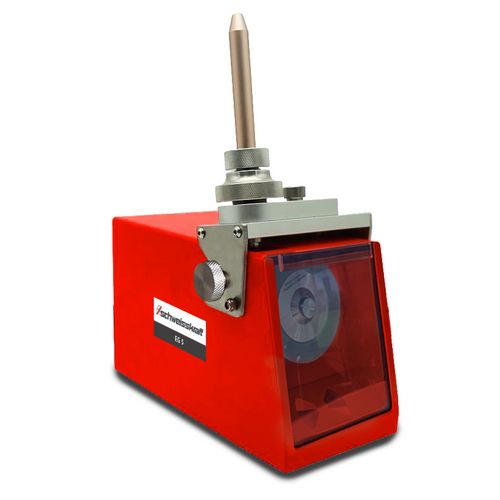

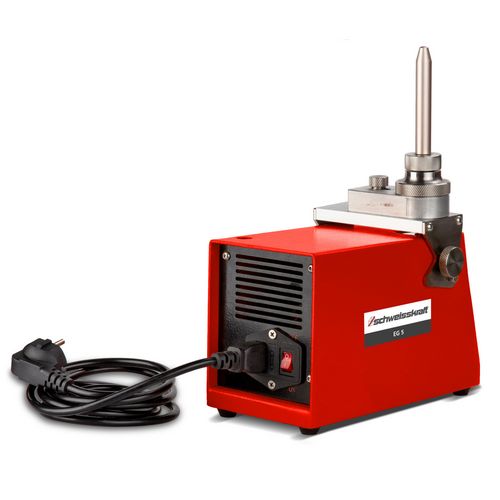

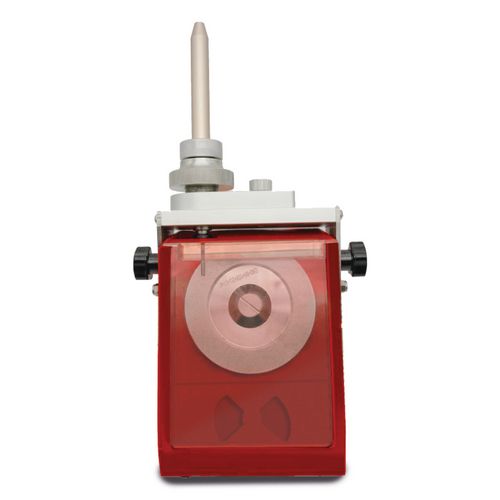

    Electrode grinding machine

    EG 5

    Best welding results due to optimally ground tungsten electrodes

    475,00 EUR excl. Tax / pc(s).
    565,25 EUR incl. 19% Tax / pc(s).
    Promotional price *
    419,00 EUR excl. Tax / pc(s).
    498,61 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1692005

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For the perfect grinding of tungsten electrodes with a diameter of 1.6 to 5 mm
    • Grinding angle stepless adjustable from 15 to 60°
    • Stop unit integrated in the device for setting the correct grinding length
    • Precise grinding in longitudinal direction causing better ignition performance, stable arc and longer service life
    • Easy grinding even with a length of only 35 mm, calottes or metal drops
    • Clamping also possible with work gloves via smooth knurled screw
    • Grinding dust can be simply removed via drawer



    • Perfect grinding of tungsten electrodes with a diameter of 1.6 to 5 mm
    • Grinding angle stepless adjustable from 15 to 60°
    • Stop unit integrated in the device for setting the correct grinding length



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Electrode diameter1,6 - 5,0 mm
    Min. electrode length35 mm
    Grinding angle15 – 60 °
    Speed6500 min¯¹
    Diamond disk diameter90 mm
    Grain size180
    VPE1
    Dimensions and weights
    Length approx.225 mm
    Width/depth approx.150 mm
    Height approx.195 mm
    Weight approx.4.1 kg
    Electrical Data
    Main motor0.07 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Diamond disc Ø 90 mm
    • One collet each 1,6 / 2,0 / 2,4 / 3,2 / 4,0 mm
