| Load capacity approx. | 750 kg |
| Stroke per pump cycle | 14.6 mm |
| VPE | 1 |

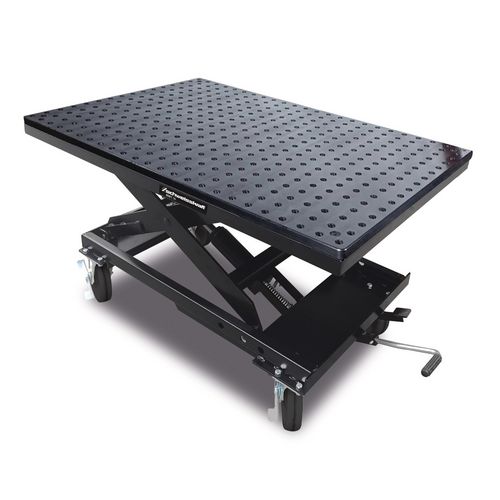

Mobile welding lift table
MWT 16 with flat perforated plate
Ergonomic working thanks to optimum working height
1.329,00
EUR excl. Tax / pc(s).
1.581,51
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1551161208N.2
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid all-steel construction with hydraulic scissor lift frame
- Table top made of heavy-duty S355 sheet steel
- Plasma-nitrided surface for increased hardness, rust and spray resistance
- CNC-milled for maximum flatness
- Manual lifting mechanism for precise height adjustment
- Ergonomic working thanks to optimum working height
- Safety locking pin with 4 positions
- Ø16 mm hole pattern for holding System 16 clamping tools
- Removable push handle for easy maneuverability
- Sturdy swivel castors with parking brake for safe mobility
- Includes galvanized steel drip tray
| Dimensions and weights | |
|---|---|
| Min. table height | 425 mm |
| Max. table height | 925 mm |
| Length approx. | 1200 mm |
| Width/depth approx. | 800 mm |
| Weight approx. | 214 kg |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| Tabletop | |
|---|---|
| Length | 1200 mm |
| Width | 800 mm |
| Material | Steel S355J2+N, plasma-nitrided |
| Borehole diameter | 16 mm |
| Material thickness | 13 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
