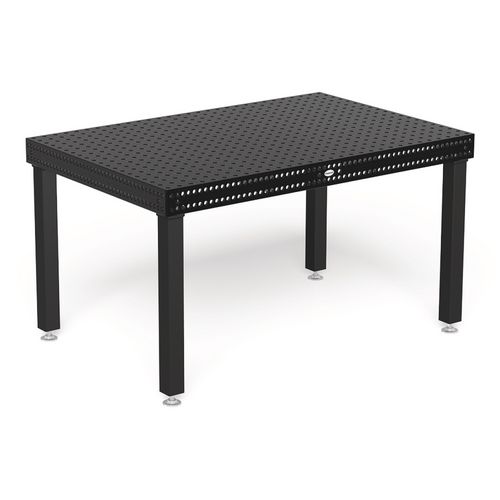

    Productimage for Professional 750 1500x1000x150 Plasma nitrided
    Brandimage to Product Professional 750 1500x1000x150 Plasma nitrided

    Welding table

    Professional 750 1500x1000x150 Plasma nitrided

    Surface hardness up to 750 Vickers

    2.282,00 EUR excl. Tax / pc(s).
    2.715,58 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 190220035P

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Made of high-quality steel S355J2+N and additionally plasma-nitrided and coated
    • Thanks to its high load-bearing capacity, it is particularly suitable for machining heavy components
    • Hole arrangement in a 100 mm grid on the table top and a parallel hole arrangement in a 50 mm grid on the sides
    • Diameter 22 mm holes
    • Table with material thickness of approx. 17 - 19 mm
    • Standard with scale
    • Foot basic equipment with load capacity 1000 kg and fine adjustable to 50 mm



    • Made of high-quality steel S355J2+N and additionally plasma-nitrided and coated
    • Thanks to its high load-bearing capacity, it is particularly suitable for machining heavy components
    • Diagonal hole arrangement on the table top and a parallel hole arrangement in a 50 mm grid on the sides
    • Standard with scale
    • Foot basic equipment with load-bearing capacity 1000 kg and fine adjustable to 50 mm



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Table feet4
    Load capacity approx.2000 kg
    Explanation load capacity approx.Maximum recommended total static load with uniform load distribution
    VPE1
    Dimensions and weights
    Table height850 mm
    Weight approx.420 kg
    Table side
    Height150 mm
    Borehole spacing50 mm
    Tabletop
    Length1500 mm
    Width1000 mm
    MaterialSteel S355J2+N, plasma nitrided and BAR-coated
    Borehole diameter22 mm
    Borehole spacing100 mm
    Material thickness17 – 19 mm
    Basic hardness approx.165 – 220 Vickers
    Surface hardness approx.450 – 750 Vickers
    Unit: pc(s).
    Packaging unit: 1

    • 4 Table legs 700 x 80 x 80 mm with foot plate Ø 90 mm
